Matrices: A Mathematical Structure for Organizing Numbers and Variables

Matrix theory is fundamental in mathematics, involving the organization of numbers into rows and columns for linear equations and transformations. This text delves into matrix elements, classifications like Zero, Diagonal, Scalar, and Identity matrices, and the defining characteristics of an invertible matrix. It also covers the computation of matrix inverses using determinants and the conditions for matrix multiplication, highlighting the non-commutative nature of this operation and its applications in solving linear systems.

See more

Introduction to Matrix Concepts

A matrix is a mathematical structure that organizes numbers or variables into a rectangular grid of rows and columns. This arrangement allows for systematic representation and manipulation of linear equations and transformations. For instance, a matrix with three rows and two columns, known as a 3x2 matrix, can be written as: \[ \begin{bmatrix} 1 & 2 \\ 3 & 4 \\ 5 & 6 \end{bmatrix} \] Matrices are integral to various disciplines, including linear algebra, physics, and computer science, due to their ability to succinctly model complex systems and operations.
Colorful ball pit balls arranged in a perfect grid pattern with repeating red, blue, green, and yellow colors on a light gray background.

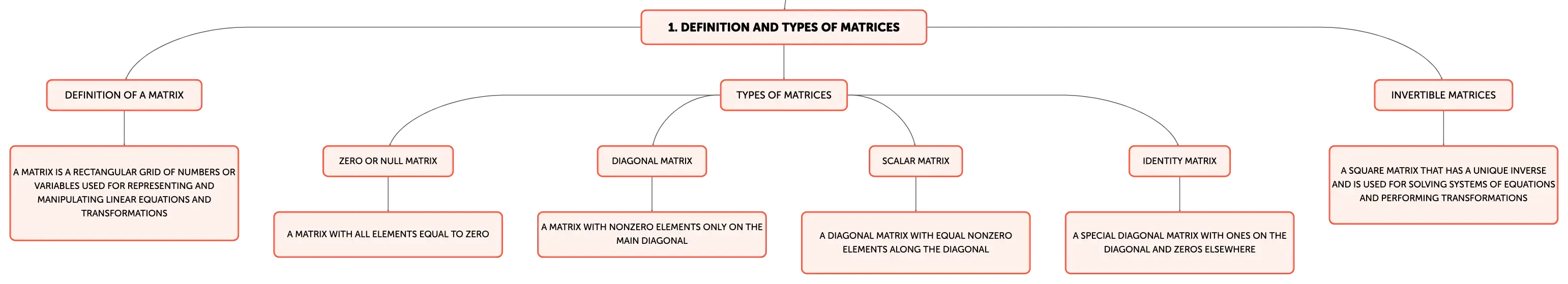

Matrix Elements and Classification

The individual items within a matrix are called elements or entries, and each is defined by its position in the matrix (row and column index). Matrices are categorized into several types based on their element patterns: a Zero or Null Matrix contains only zeros; a Diagonal Matrix has nonzero elements only on its main diagonal and zeros elsewhere; a Scalar Matrix is a diagonal matrix with equal nonzero elements along the diagonal; and an Identity Matrix, a special form of a diagonal matrix, has ones on the diagonal and zeros in all other positions.

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Matrix Definition

Click to check the answer

A matrix is a rectangular array of numbers or variables arranged in rows and columns.

2

3x2 Matrix Example

Click to check the answer

A 3x2 matrix has 3 rows and 2 columns, e.g., [[1, 2], [3, 4], [5, 6]].

3

Matrix Applications

Click to check the answer

Matrices are used in linear algebra, physics, and computer science for modeling and computations.

4

A ______ Matrix is a type of diagonal matrix where all the diagonal elements are ______ and all other positions are filled with ______.

Click to check the answer

Scalar equal nonzero zeros

5

Inverse Matrix Equation

Click to check the answer

For matrix A, its inverse B satisfies AB = BA = I, where I is the identity matrix.

6

Identity Matrix Properties

Click to check the answer

Identity matrix I has ones on the diagonal and zeros elsewhere; acts as multiplicative identity.

7

Application of Invertible Matrices

Click to check the answer

Invertible matrices are used to solve linear systems and perform matrix transformations.

8

The ______ of a matrix, which is a scalar value, is essential to determine if a square matrix can be inverted.

Click to check the answer

determinant

9

A square matrix is considered ______ and lacks an inverse when its determinant equals ______.

Click to check the answer

singular zero

10

Matrix Multiplication Resulting Dimensions

Click to check the answer

Result of multiplying matrix A (m x n) with B (n x p) is a matrix of dimensions m x p.

11

Matrix Entry Calculation in Multiplication

Click to check the answer

Entry in product matrix is sum of products of corresponding elements from A's row and B's column.

12

Commutativity in Matrix Multiplication

Click to check the answer

Matrix multiplication is not commutative; AB does not imply BA, and one may exist while the other does not.

13

Types of Matrices

Click to check the answer

Classified by elements: zero, identity, diagonal, scalar, symmetric, etc.

14

Matrix Multiplication Requirements

Click to check the answer

Requires matching inner dimensions: if A is m×n, B must be n×p to multiply A×B.

15

Invertible Matrix Importance

Click to check the answer

Central to solving linear systems; an invertible matrix has a unique inverse used for simplification.
