Scatter Plots: A Tool for Visualizing Relationships between Variables
Scatter plots are graphical tools used to assess relationships between two continuous variables, revealing correlations, trends, and outliers. They are crucial in exploratory data analysis, particularly in psychological research for correlational studies. These plots, along with the correlation coefficient 'r', help quantify the strength and direction of associations between variables, such as stress levels and sleep hours or self-esteem and social anxiety.
See moreExploring the Fundamentals of Scatter Plots

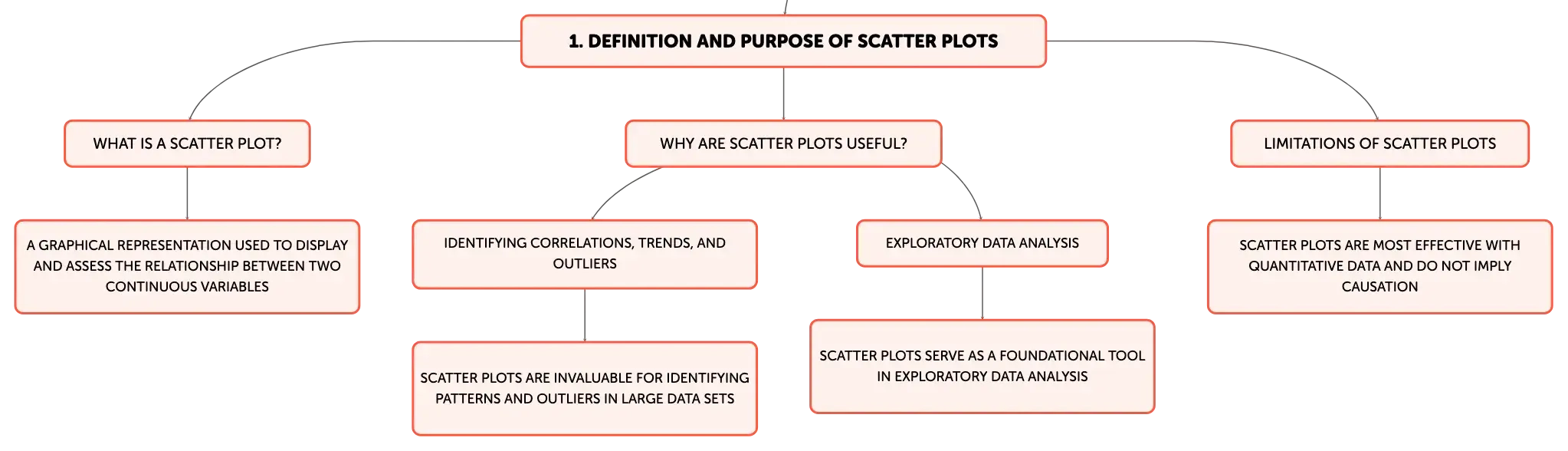

A scatter plot, also known as a scatter diagram or scatter graph, is a graphical representation used to display and assess the relationship between two continuous variables. Each point on the scatter plot corresponds to one observation in the data set, with the point's position along the horizontal (x-axis) and vertical (y-axis) axes representing its values for the two variables. Scatter plots are invaluable for identifying correlations, trends, and outliers, and they serve as a foundational tool in exploratory data analysis. They are particularly effective for visualizing large data sets where patterns may not be immediately obvious.Analyzing Correlations with Scatter Plots
The pattern of points on a scatter plot can reveal the nature of the relationship between the variables. An upward trend, where points slope from the lower left to the upper right, indicates a positive correlation, suggesting that as one variable increases, the other tends to increase as well. A downward trend, sloping from the upper left to the lower right, denotes a negative correlation, where one variable tends to decrease as the other increases. A random distribution of points, with no apparent trend, implies a lack of correlation. It is crucial to recognize that scatter plots are most effective with quantitative data and that the perceived relationship is purely observational and does not imply causation.The Role of the Line of Best Fit in Scatter Plots
A line of best fit, or regression line, is often added to a scatter plot to summarize the relationship between the variables. This line represents the best linear approximation of the data, calculated using statistical methods to minimize the distances between the points and the line itself. The slope of the line indicates the direction of the relationship, while the closeness of the points to the line reflects the strength of the correlation. A strong correlation is suggested when points cluster tightly around the line, whereas a more scattered distribution indicates a weaker correlation. Outliers—points that fall far from the line—can significantly affect the line of best fit and should be carefully evaluated for their impact on the analysis.Utilizing Scatter Plots in Psychological Research
Scatter plots are particularly useful in psychological research for examining the relationships between variables in correlational studies. These studies aim to determine the association between variables without experimental manipulation. Scatter plots can be categorized based on the direction of the correlation they display: positive, negative, or none. For instance, a positive correlation scatter plot might illustrate the relationship between stress levels and the number of hours of sleep, where higher stress correlates with fewer hours of sleep. A negative correlation scatter plot could represent the inverse relationship between self-esteem and social anxiety. A plot showing no discernible trend would suggest no apparent relationship, such as between hair color and reading ability.Quantifying Relationships with the Correlation Coefficient
The correlation coefficient, denoted as 'r', is a statistical measure that quantifies the direction and degree of correlation between two variables, ranging from -1 to +1. A value of +1 indicates a perfect positive correlation, -1 indicates a perfect negative correlation, and 0 indicates no correlation. Values close to +1 or -1 suggest a strong relationship, while values near 0 suggest a weak or no relationship. It is important to interpret the correlation coefficient within the context of the data and to remember that a high correlation does not imply causation. Establishing causality requires controlled experimental designs beyond the scope of correlational analysis.Concluding Insights on Scatter Plots
Scatter plots are essential tools for visualizing and interpreting the relationships between two continuous variables in statistical analysis. They provide insights into the direction, form, and strength of correlations, with the line of best fit offering a visual summary of these relationships. While scatter plots can reveal associations, they do not establish causality, and the presence of outliers can influence the interpretation of the data. Mastery of scatter plots is crucial for students and researchers alike, as they are widely used across various scientific disciplines, including psychology, to explore and hypothesize about the interplay between different variables.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In a scatter plot, each point represents a single ______, with its placement indicating the values on the ______ and ______ axes.
Click to check the answer
2
Positive Correlation Indication on Scatter Plot
Click to check the answer
3
Negative Correlation Indication on Scatter Plot
Click to check the answer
4
No Correlation Sign on Scatter Plot
Click to check the answer
5
In a scatter plot, the ______ summarizes the relationship between two variables.
Click to check the answer
6
Scatter plot correlation types
Click to check the answer
7
Positive correlation example
Click to check the answer
8
Negative correlation example
Click to check the answer
9
The ______ ______, represented by 'r', quantifies the relationship between two variables on a scale from ______ to ______.
Click to check the answer
10
A correlation coefficient of ______ suggests no relationship, while values near ______ or ______ indicate a strong correlation, but not necessarily ______.
Click to check the answer
11
Scatter plot purpose in statistical analysis
Click to check the answer
12
Line of best fit role in scatter plots
Click to check the answer
13
Limitation of scatter plots regarding causality
Click to check the answer
