Graph Data Structures
Graph data structures are pivotal in representing complex networks through vertices and edges. They are categorized into directed, undirected, weighted, cyclic, and acyclic graphs. These structures underpin algorithms for network analysis, social media, and more, with Python being a key language for implementation.
See moreExploring the Fundamentals of Graph Data Structures
A Graph Data Structure is an essential concept in computer science that represents a collection of nodes, termed 'vertices', connected by links called 'edges'. This non-linear data structure is highly versatile, enabling the modeling of a wide array of complex relationships within a network. For instance, in social networks, vertices can represent individuals, and edges can denote the friendships between them. Graphs are primarily categorized into two types: undirected graphs, where edges imply a two-way relationship, and directed graphs, or 'digraphs', where edges have a designated direction indicating a one-way relationship. Furthermore, graphs can have 'weighted' edges, which carry values to represent various attributes such as cost or distance, adding another layer of complexity to the structure.Key Concepts and Terminology in Graph Theory
Mastery of graph data structures necessitates familiarity with its key concepts and terminology. 'Vertices' are the fundamental units or points in a graph, and 'edges' are the connections that link these vertices. Vertices that share an edge are known as 'adjacent vertices'. The 'degree of a vertex' refers to the number of edges incident to it, with special cases being 'isolated vertices' with a degree of zero, and 'loops' which contribute twice to the degree of a vertex. A 'path' in a graph is a sequence of edges that connects a series of distinct vertices. It is crucial to distinguish that the term 'graph' in this context is not synonymous with data charts such as bar graphs, but rather refers to a mathematical structure that models pairwise relations between objects.Categorizing Graphs by Their Properties
Graphs can be categorized into various types based on distinct properties. Directed graphs, or digraphs, feature edges with a set orientation, while undirected graphs have edges that lack directionality. Weighted graphs include edges with assigned values, which can represent metrics like distance, cost, or capacity, contrasting with unweighted graphs that do not assign such values. Graphs can also be described as 'cyclic' if they contain at least one cycle—a closed path beginning and ending at the same vertex—or 'acyclic' if they lack such cycles. Recognizing these categories is fundamental for algorithm design and for accurately modeling different kinds of relationships and processes.The Role of Graphs in Computing and Technology
Graphs play a critical role in various aspects of computing and technology due to their ability to represent intricate relationships and structures. They are employed in designing and analyzing communication networks, routing algorithms, and in solving problems involving paths and connectivity. For instance, mapping services like Google Maps utilize graph algorithms to calculate the shortest or fastest routes. In video games, graphs can represent the navigable space within a virtual environment. Social networking platforms, such as Facebook, leverage graph structures to map out and analyze user connections. The process of graph traversal, which involves visiting each vertex in a systematic manner, is a key operation in many graph algorithms and applications.Graph Implementation Techniques in Python

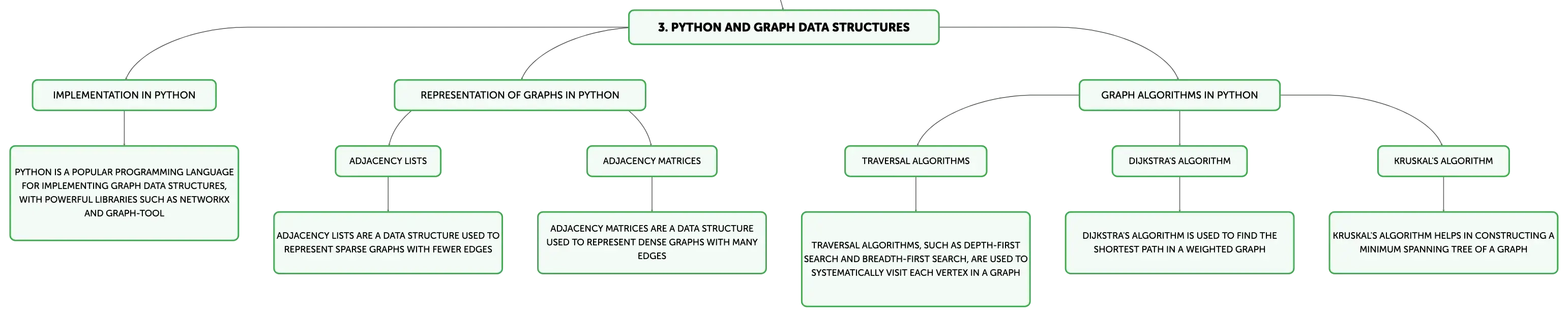

Python is a popular programming language for implementing graph data structures, thanks to its readability and the availability of powerful libraries such as NetworkX and Graph-tool. Graphs in Python can be represented using data structures like adjacency lists, which are ideal for sparse graphs with fewer edges, or adjacency matrices, which are more efficient for dense graphs with many edges. Python's graph libraries offer a range of pre-built classes and functions that facilitate the creation, manipulation, and analysis of graphs, making it an accessible choice for both beginners and experienced programmers.Navigating Graph Algorithms in Python
A solid understanding of graph algorithms is crucial for working with graph data structures in Python. Fundamental traversal algorithms include Depth-First Search (DFS), which explores as deep as possible along each branch before backtracking, and Breadth-First Search (BFS), which examines nodes in a level-by-level manner. Other significant algorithms are Dijkstra's algorithm, which is used to find the shortest path in a weighted graph, and Kruskal's algorithm, which helps in constructing a Minimum Spanning Tree of a graph. These algorithms are vital for addressing complex computational problems and are readily implemented using Python's graph libraries.Graph Data Structures in Real-World Scenarios
Graph Data Structures find extensive applications in the real world. Google's PageRank algorithm, which ranks web pages in search results, is based on a graph structure where vertices represent web pages and edges denote hyperlinks. Social networks like Facebook model user relationships as graphs, potentially with weighted edges to reflect the strength or frequency of interactions. Travel and navigation services employ graphs to recommend efficient travel routes, while telecommunication networks are depicted as graphs with nodes representing terminals and edges as communication lines. These applications underscore the importance of graph data structures in analyzing and optimizing complex systems and processes.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In computer science, a ______ is a collection of 'vertices' linked by 'edges'.
Click to check the answer
2
Graphs can be used to model complex networks, such as ______ where people are vertices and their connections are edges.
Click to check the answer
3
Vertices and Edges Relationship
Click to check the answer
4
Degree of a Vertex
Click to check the answer
5
Definition of a Path in Graphs
Click to check the answer
6
In ______ graphs, edges have a specific direction, unlike in ______ graphs where edges have no directionality.
Click to check the answer
7
A graph is termed '' if it has at least one closed path starting and ending at the same point, and '' if it has no such paths.
Click to check the answer
8
Graphs in Communication Networks
Click to check the answer
9
Graph Algorithms in Mapping Services
Click to check the answer
10
Graph Traversal Importance
Click to check the answer
11
Graphs in Python can be depicted using structures like ______ lists for sparse graphs or ______ matrices for dense graphs.
Click to check the answer
12
DFS traversal pattern
Click to check the answer
13
BFS traversal pattern
Click to check the answer
14
Dijkstra vs Kruskal algorithms
Click to check the answer
15
Google's ______ algorithm uses a graph structure to rank web pages, with vertices as pages and edges as hyperlinks.
Click to check the answer
16
In social networks like ______, user relationships are modeled as graphs, which may include weighted edges.
Click to check the answer
