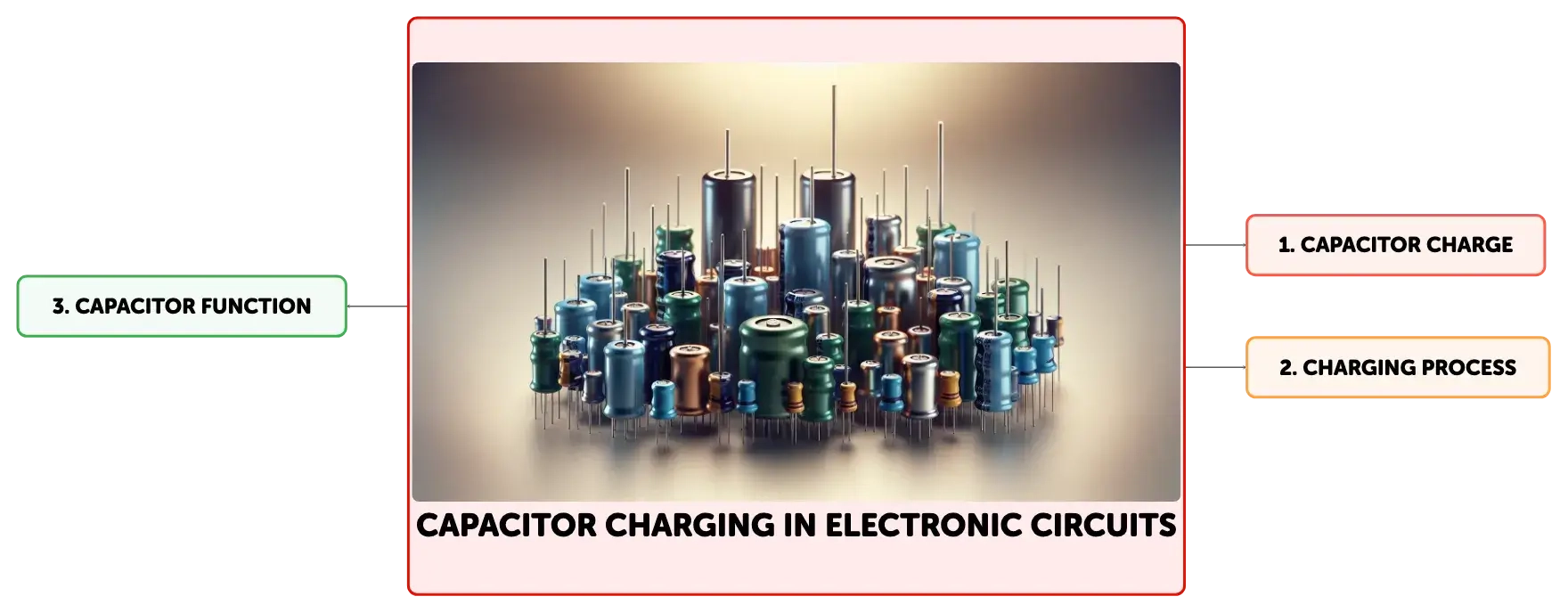

Capacitor Charging in Electronic Circuits
The main topic of the text is the role of capacitor charge in electronic circuits, detailing how capacitors store and release electrical energy. It explains the charging process, influenced by capacitance and resistance, and the time constant's importance. Practical applications, such as in computers and electric vehicles, and the impact of factors like voltage and ESR on charging time are also discussed.
See moreThe Role of Capacitor Charge in Electronic Circuits

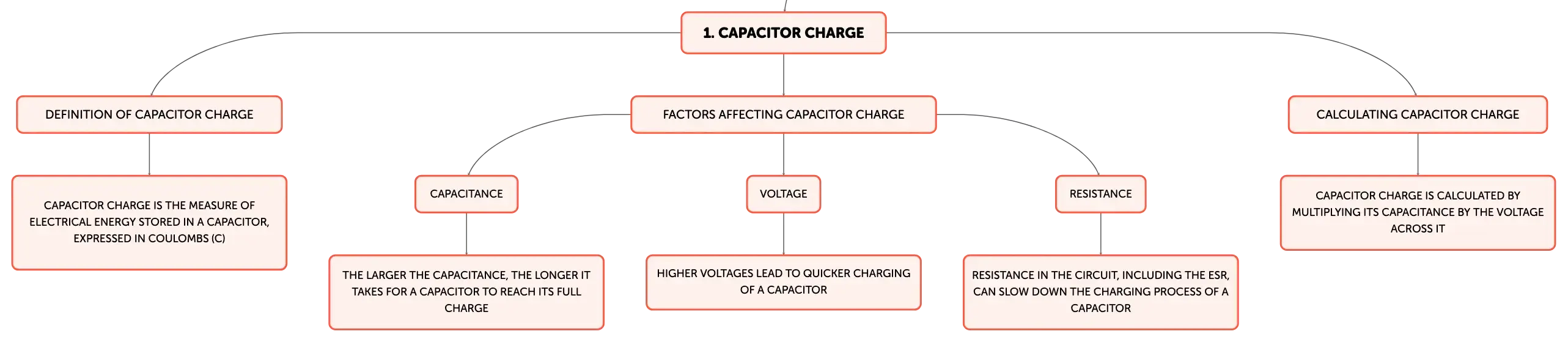

In electronic circuits, a capacitor's charge is the measure of electrical energy it holds, expressed in Coulombs (C). This charge is the product of the capacitor's capacitance, measured in Farads (F), and the voltage (V) applied across its terminals. Capacitors are akin to rechargeable batteries in that they can store and release energy, playing a vital role in regulating voltage and current in electronic devices. Their ability to quickly charge and discharge makes them indispensable in smoothing out power fluctuations and providing bursts of energy when needed.The Dynamics of Capacitor Charging
Charging a capacitor involves moving electrons from one plate to another, creating a potential difference between the plates. This process is governed by an exponential function, where the voltage across the capacitor increases rapidly at first and then slows as it approaches the voltage of the charging source. The rate of charging is influenced by the capacitor's capacitance and the resistance of the circuit, described by the time constant (τ = RC), where R is the resistance in ohms (Ω) and C is the capacitance in farads (F). Understanding this charging behavior is crucial for designing circuits with precise timing and energy storage requirements.Influences on Capacitor Charging Time
The time it takes for a capacitor to reach its full charge is affected by several factors. A larger capacitance means more charge storage capacity, which naturally requires more time to fill. The charging source's voltage also impacts the charging speed, with higher voltages leading to quicker charging. Resistance in the circuit, including the inherent resistance of the capacitor known as equivalent series resistance (ESR), can slow down the charging process. These considerations are essential for engineers when designing circuits to ensure capacitors charge within the desired timeframe.Capacitor Charging Equation and Time Constant
The behavior of a charging capacitor is quantified by the equation V(t) = V0(1 - e^(-t/RC)), where V(t) is the voltage across the capacitor at time t, V0 is the initial voltage from the power source, and e is Euler's number (approximately 2.71828). The time constant τ = RC is a key parameter that indicates how quickly the capacitor charges: a smaller τ means a faster charging rate. This equation is a fundamental tool for electrical engineers and technicians to predict and control the charging process in electronic circuits.Capacitor Charging in Practical Applications

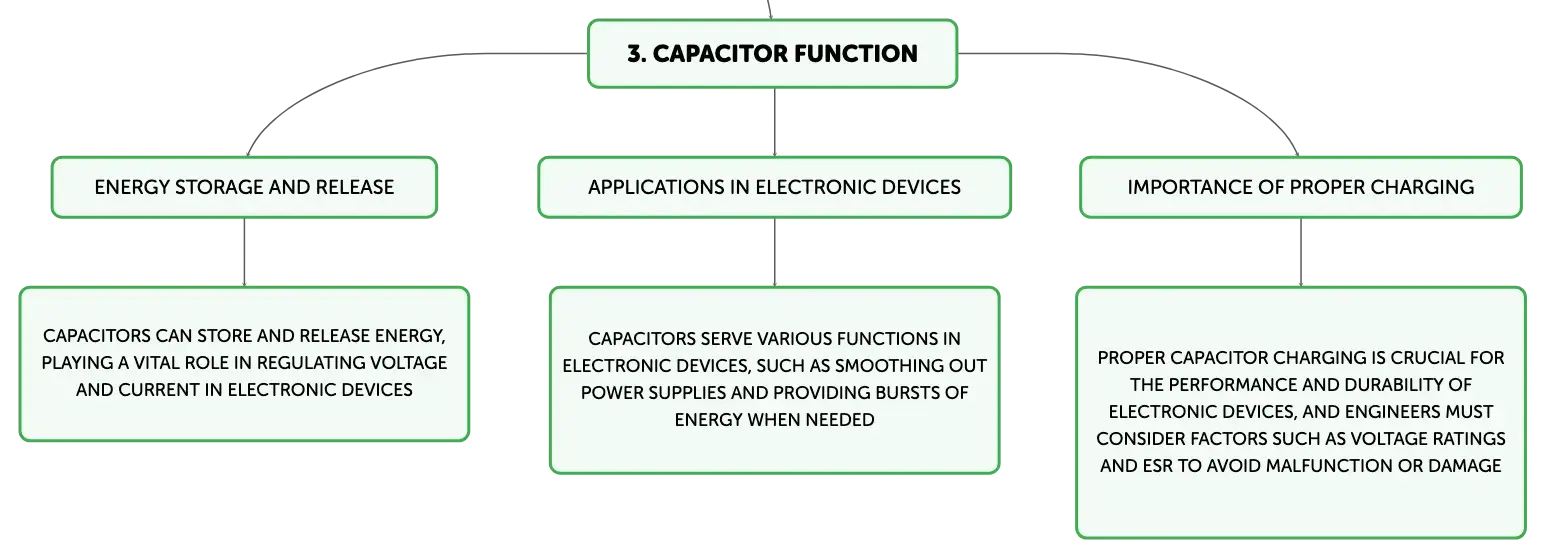

Capacitors serve a wide array of functions in electronic devices, from smoothing out power supplies in computers and smartphones to enabling the flash mechanism in cameras and providing the energy needed for the rapid acceleration and regenerative braking in electric vehicles. Proper capacitor charging is critical for the performance and durability of these devices. Design considerations include selecting capacitors with appropriate voltage ratings, using current-limiting resistors to control the inrush of current, and accounting for environmental factors like temperature that can influence capacitor behavior. It is also important to avoid mistakes such as reversing polarity, exceeding voltage ratings, and overlooking the ESR, which can lead to malfunction or damage.Detailed Insights into Capacitor Charge Calculations
A comprehensive understanding of capacitor charge involves precise definitions and calculations. The charge (Q) stored in a capacitor is calculated by multiplying its capacitance (C) by the voltage (V) across it (Q = CV). This formula underscores the direct relationship between a capacitor's physical characteristics, the electrical potential applied, and its charge capacity. The charging equation further elucidates the time-dependent nature of charge accumulation, with the time constant τ providing a benchmark for the rate at which a capacitor approaches full charge. Accurate calculations of charge at any point in time are essential for assessing a capacitor's performance within an electronic circuit.Want to create maps from your material?
