Convex and Concave Polygons
Understanding convex polygons is crucial in geometry, as they are shapes with all interior angles less than 180 degrees and no outward-facing vertices. These polygons are found in nature and human-made structures, and can be classified as regular or irregular based on side and angle equality. Distinguishing them from concave polygons involves specific geometric tests, which are essential for applications in various fields such as architecture and computer graphics.
See moreUnderstanding Convex Polygons

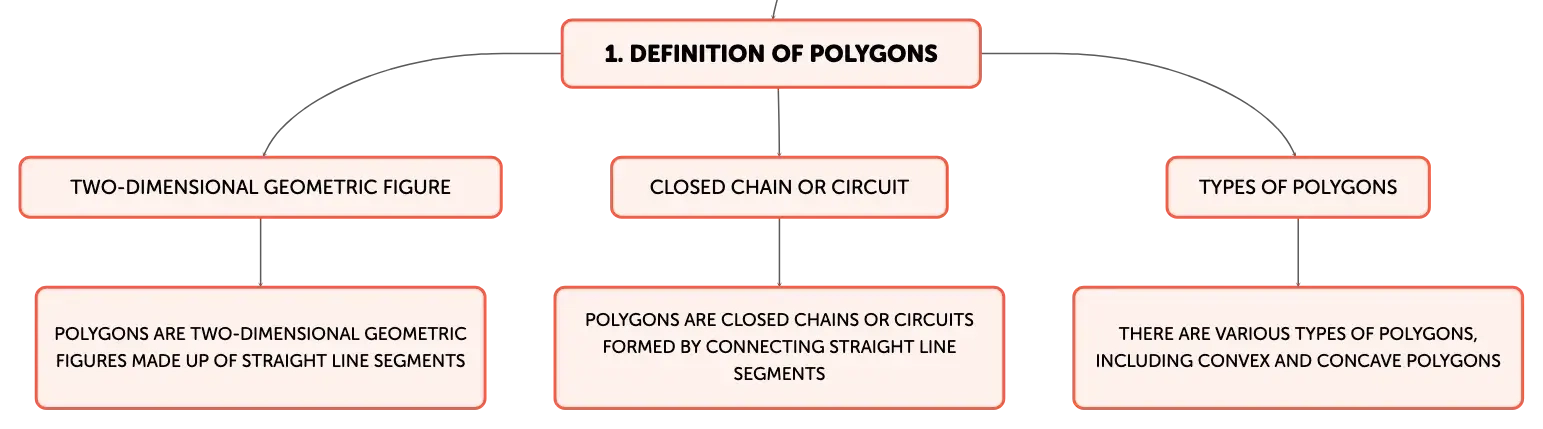

A polygon is a two-dimensional geometric figure with a finite number of straight line segments connected to form a closed chain or circuit. Among the various types of polygons, convex polygons are those in which all interior angles are less than 180 degrees and no line segment between any two points on the boundary ever passes outside the polygon. This definition implies that all vertices of a convex polygon point away from the interior, ensuring that any line drawn through the polygon will intersect its boundary at exactly two points. Understanding the properties of convex polygons is essential for their application in various mathematical and practical contexts.Examples and Properties of Convex Polygons
Convex polygons are prevalent in both natural and human-made structures, such as the facets of crystals, the cross-sections of fruits, and architectural designs. These polygons are characterized by their interior angles, each being less than 180 degrees, and by having no indentations or inward-pointing vertices. The diagonals of a convex polygon are always contained within the polygon, and any line segment joining two points within the polygon will not extend outside it. These properties are fundamental to the identification and classification of convex polygons and are used in various mathematical proofs and algorithms.Classifying Convex Polygons
Convex polygons can be classified based on the equality of their sides and angles. Equilateral polygons have all sides of equal length, while equiangular polygons have all angles of equal measure. A regular polygon is both equilateral and equiangular, exhibiting a high degree of symmetry. Regular polygons include equilateral triangles, squares, and regular pentagons, among others, and they possess congruent diagonals and vertices that are equidistant from the center, defining a circumcircle. Irregular convex polygons, on the other hand, have sides and angles that are not necessarily of equal length or measure, such as trapezoids and kites, and they lack the symmetrical properties of regular polygons.Distinguishing Between Convex and Concave Polygons
To distinguish between convex and concave polygons, one can use several geometric tests. The line segment test checks whether a line segment drawn between any two points within the polygon remains entirely inside the figure. The extension test involves extending the sides of the polygon; if none of the extended lines intersect the interior of the polygon, it is convex. The interior angle test verifies that all angles are less than 180 degrees. These tests are useful for classifying polygons in geometric problems and for ensuring the accuracy of mathematical models involving polygonal shapes.Summary of Convex and Concave Polygon Characteristics

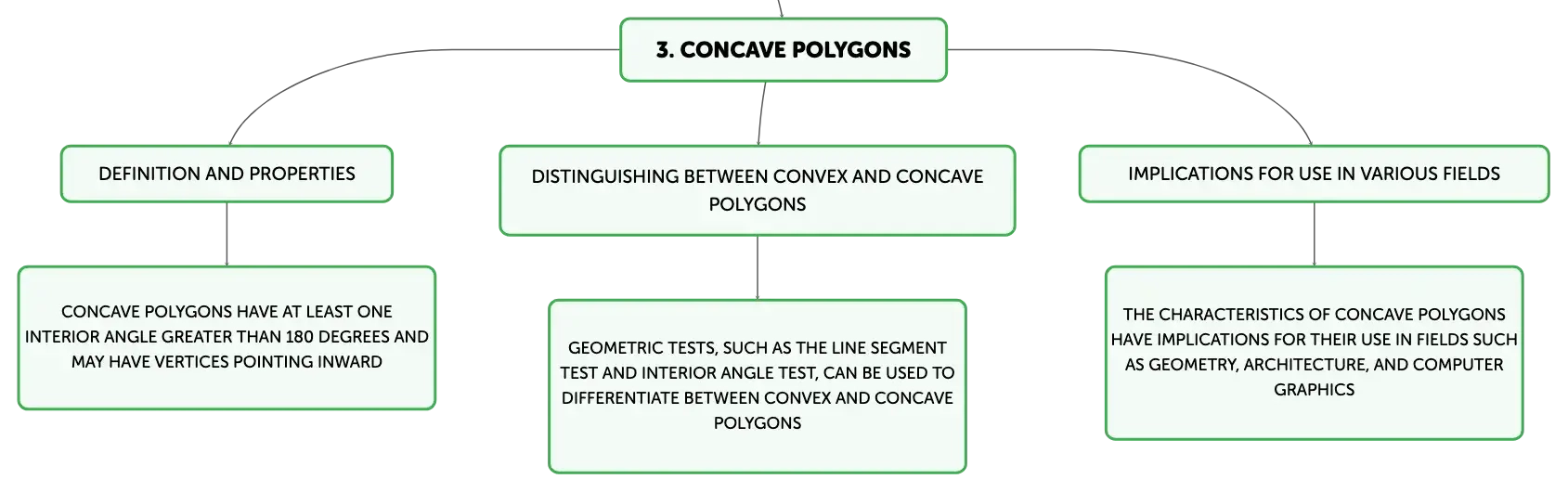

Convex polygons are defined by interior angles that are each less than 180 degrees, vertices that all point outward, and diagonals that lie entirely within the polygon. In contrast, concave polygons have at least one interior angle greater than 180 degrees, one or more vertices that point inward, and diagonals that may extend outside the polygon. When a line segment intersects a convex polygon, it will do so at only two points, whereas it may intersect a concave polygon at multiple points. These characteristics are crucial for distinguishing between the two types of polygons and have implications for their use in fields such as geometry, architecture, and computer graphics.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
A ______ is a 2D shape formed by a finite number of straight lines that create a closed loop.
Click to check the answer
2
Interior angles of convex polygons
Click to check the answer
3
Diagonals in convex polygons
Click to check the answer
4
Line segments within convex polygons
Click to check the answer
5
A ______ polygon has sides and angles of the same length and measure, respectively, and includes shapes like squares and regular pentagons.
Click to check the answer
6
In contrast to regular shapes, ______ convex polygons like trapezoids and kites do not have sides and angles of uniform size.
Click to check the answer
7
Line Segment Test for Polygons
Click to check the answer
8
Polygon Side Extension Test
Click to check the answer
9
Interior Angle Test for Polygons
Click to check the answer
10
A ______ polygon is characterized by all interior angles being less than ______ degrees and all vertices pointing ______.
Click to check the answer
