Circuit Analysis

Techniques for Simplifying Resistors in Circuits

Simplifying complex resistor networks is a critical step in circuit analysis, analogous to simplifying expressions in algebra. This involves systematically combining resistors using rules for series and parallel configurations—adding resistances in series and applying the reciprocal formula for parallel resistances. This iterative process continues until the network is reduced to a single equivalent resistor, which simplifies the analysis of the entire circuit by reducing the complexity of the calculations involved.

Core Principles and Laws Governing Circuit Analysis

Circuit analysis is underpinned by a set of fundamental principles and laws that describe the behavior of electrical circuits. Ohm's Law, which defines the relationship between voltage (V), current (I), and resistance (R), is pivotal for determining the resistance at any point in a circuit. The power dissipated by a resistor is calculated as the product of the voltage across it and the current flowing through it. Kirchhoff's Current Law (KCL) states that the total current entering a node (or junction) must equal the total current leaving the node. Kirchhoff's Voltage Law (KVL) dictates that the sum of the electrical potential differences around any closed network (or loop) is zero. These principles form the foundation for deriving the equations necessary to analyze and solve circuit problems.

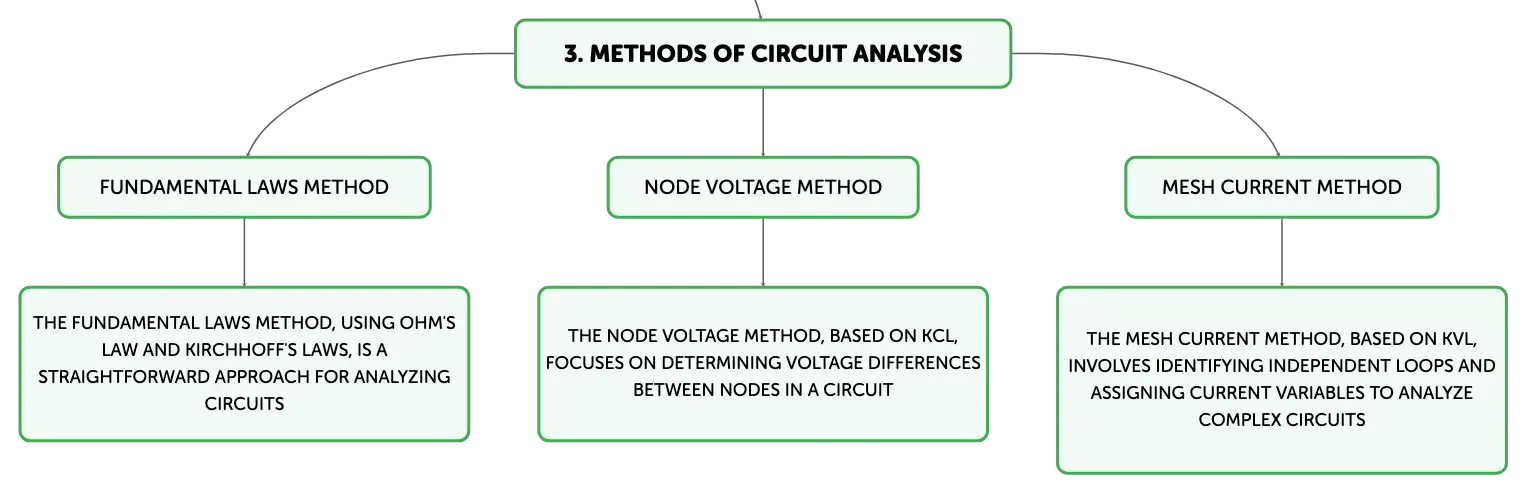

Analytical Methods in Circuit Analysis

Circuit analysis can be approached using several methods, each suited to different types of circuits. The application of fundamental laws, such as Ohm's Law combined with Kirchhoff's Laws, is a straightforward approach often taught at the introductory level. The node voltage method, which utilizes KCL, focuses on determining the voltage differences between various nodes in a circuit. The mesh current method, based on KVL, involves identifying independent loops within the circuit and assigning current variables to them. Both the node voltage and mesh current methods are systematic and powerful, particularly for analyzing complex circuits, and lead to sets of linear equations that can be solved to find the required electrical quantities.

Circuit Analysis in Practice and Simulation Software

In practical scenarios, especially with intricate circuits like those in computer motherboards, manual circuit analysis can be impractical due to the complexity involved. To address this, engineers use circuit simulation software that can model and analyze electrical circuits with high accuracy and efficiency. These tools are invaluable for simulating circuit behavior before physical prototypes are built, saving time and resources in the design and testing phases. They are also used for educational purposes, allowing students to experiment with virtual circuits and observe the effects of changes in real-time.

Circuit Analysis Case Studies and Educational Insights

Demonstrating circuit analysis through case studies helps to solidify the concepts and methods discussed. For example, a simple circuit with a single voltage source and several resistors can be analyzed using the fundamental laws method to calculate the current with Ohm's Law. More complex circuits with multiple nodes and loops can be tackled with the node voltage or mesh current methods, applying the relevant laws and solving the resulting system of equations to find the currents and voltages at various points in the circuit. These examples underscore the importance of circuit analysis in electrical engineering, equipping students with the skills to predict and understand the behavior of electrical systems.
