Conceptual Blueprint for Computer Systems
Von Neumann Architecture is a foundational concept in computer systems design, integrating CPU, memory, and I/O devices via a single system bus. This architecture, conceptualized by John von Neumann, allows for program instructions and data to be stored in the same memory space, facilitating streamlined design and flexible programming. Despite its widespread adoption and benefits, it encounters limitations such as the 'Von Neumann bottleneck', which restricts data throughput and processing speed, and challenges in parallel processing.
See moreExploring the Fundamentals of Von Neumann Architecture

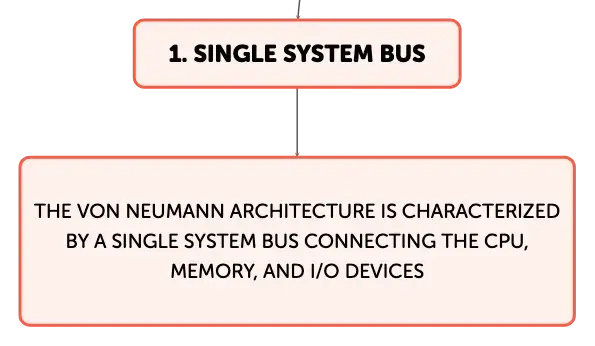

Von Neumann Architecture is a conceptual blueprint for constructing computer systems, characterized by a single system bus connecting the central processing unit (CPU), memory, and input-output (I/O) devices. Conceived by mathematician and physicist John von Neumann in 1945, this architecture revolutionized computing by storing program instructions and data in the same memory space. This approach contrasts with the Harvard Architecture, which maintains separate storage for instructions and data. The Von Neumann model's integration of memory and processing facilitates a more streamlined and flexible computer design, enabling easier programming and system expansion.Key Elements of Von Neumann Architecture
The Von Neumann Architecture is composed of four primary elements that collaborate to execute computational tasks. The CPU, the brain of the computer, processes data and instructions through its arithmetic logic unit (ALU) and control unit (CU). The memory hierarchy, which includes volatile primary memory (RAM) and non-volatile secondary storage (such as hard drives and solid-state drives), holds both the data and the program code. I/O devices serve as the interface for human interaction and external communication, while the System Bus, comprising data, address, and control lines, orchestrates the flow of information among these components. The harmonious operation of these elements is essential for the computer's performance and efficiency.Visualizing Von Neumann Architecture
A diagram of the Von Neumann Architecture typically depicts the interconnectivity of its main components: the CPU, memory, I/O devices, and the System Bus. The System Bus is further divided into the data bus, which carries the actual data, the address bus, which specifies memory locations, and the control bus, which manages the timing and coordination of operations. Within the CPU, the ALU performs mathematical and logical operations, while the CU directs the sequence of program execution. Memory acts as a central repository for both instructions and data, enabling dynamic allocation and program flexibility. I/O devices facilitate user interaction, with data and control signals transmitted through the System Bus.Advantages and Challenges of Von Neumann Architecture

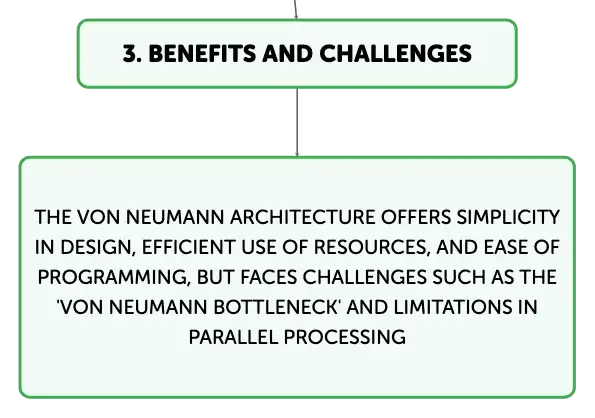

The Von Neumann Architecture offers several benefits, such as simplicity in design, efficient use of resources, and ease of programming, which have contributed to its widespread adoption. It also supports a wide range of software due to its general-purpose nature. However, it faces challenges like the 'Von Neumann bottleneck,' a limitation caused by the shared bus that can restrict data throughput and processing speed. The architecture's sequential processing model can impede parallel execution, and the continuous operation of its components may lead to increased power consumption and thermal output, necessitating effective cooling solutions.Memory and Input/Output Devices in Von Neumann Architecture
Memory and I/O devices are critical in Von Neumann Architecture for the seamless execution of programs and user interaction. Primary memory, or RAM, provides fast, temporary storage for active processes, while secondary memory offers persistent storage for programs and data. The shared memory architecture enhances efficiency and programming flexibility but can also contribute to the Von Neumann bottleneck. I/O devices are integral for interfacing with users and external systems, and their performance is heavily dependent on the System Bus's ability to manage data transfers efficiently between these devices, the CPU, and memory.Von Neumann Architecture in Practice
Von Neumann Architecture is the foundation for a diverse array of computing systems, ranging from everyday personal computers and smartphones to specialized microcontrollers and embedded systems. Its versatility makes it suitable for both general-purpose computing and application-specific tasks, such as in industrial automation. Even in the realm of supercomputers and high-performance computing, where the bottleneck can be a significant concern, the architecture is often employed, albeit with enhancements like parallel processing and advanced interconnects to boost performance.Von Neumann vs. Harvard Architectures
The Von Neumann and Harvard Architectures represent two distinct approaches to computer system design. The Von Neumann model utilizes a single memory space and bus system for both instructions and data, which can lead to bottlenecks and limit parallel processing capabilities. In contrast, the Harvard Architecture employs separate storage and buses for instructions and data, enabling simultaneous access and potentially faster processing. The choice between these architectures depends on various factors, including performance needs, memory efficiency, design complexity, and application requirements, with each offering unique advantages and trade-offs.The Evolution and Prospects of Von Neumann Architecture
Over the years, Von Neumann Architecture has undergone significant enhancements, such as the introduction of pipelining, cache memory, multi-core processors, and dedicated I/O controllers, to mitigate its inherent limitations and improve overall performance. As the computing landscape continues to evolve, emerging technologies like quantum computing, parallel processing innovations, and memory-centric architectures are being explored to address the challenges posed by the traditional Von Neumann model. Nevertheless, the core principles of this architecture remain influential in contemporary computing, underscoring its lasting impact and adaptability to future advancements.Want to create maps from your material?
