The Decorator Pattern in Software Design
The Decorator Pattern is a structural design pattern that allows for the dynamic addition of behaviors to objects, adhering to software design principles like the Open/Closed Principle and Single Responsibility Principle. It's used in GUI development and Java's I/O streams, offering flexibility and maintainability while considering performance trade-offs.
See moreExploring the Decorator Pattern in Software Design
The Decorator Pattern is a structural design pattern essential in software design, allowing for the dynamic addition of behaviors to individual objects without modifying their original classes. This pattern involves wrapping an object with one or more decorator classes that provide additional functionalities. These decorators conform to the interface of the object they are enhancing, enabling them to operate interchangeably. The pattern can be visualized as wrapping a present, where each layer of wrapping symbolizes new features added to the original item, without changing the item itself.Core Principles of the Decorator Pattern

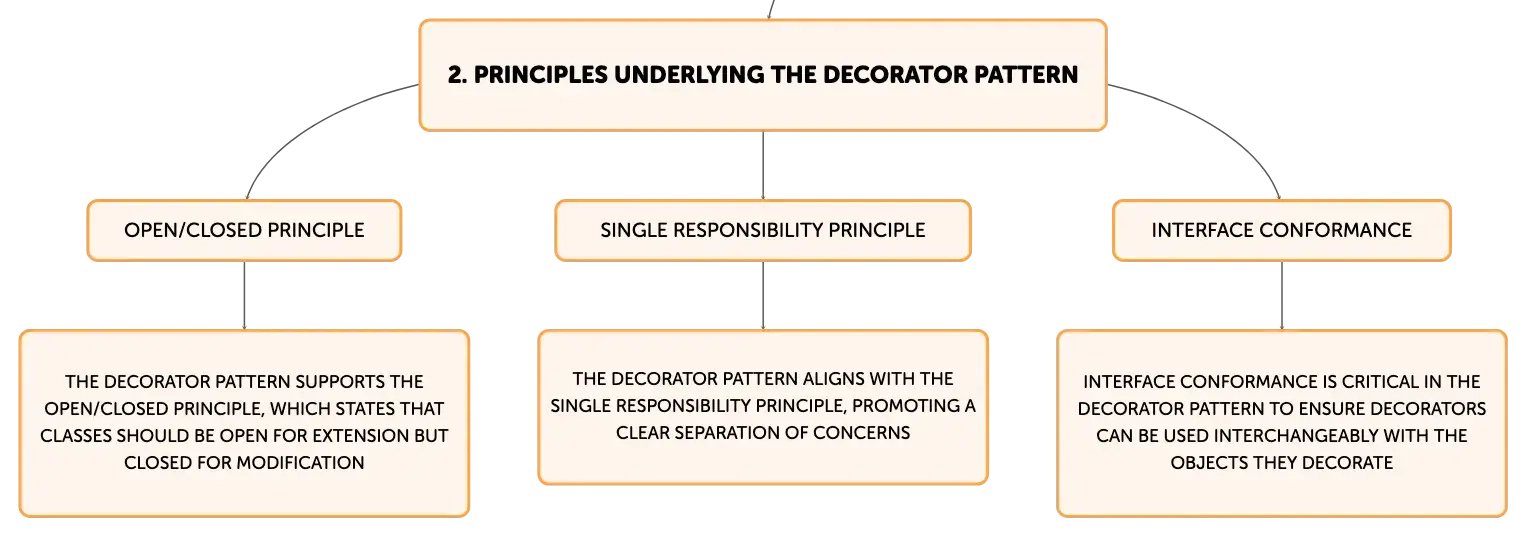

The Decorator Pattern is underpinned by fundamental software design principles. The Open/Closed Principle, which states that classes should be open for extension but closed for modification, is pivotal to the pattern's ability to extend behavior without altering existing code. The Single Responsibility Principle asserts that a class should have only one reason to change, promoting a clear separation of concerns. Interface Conformance is critical as well, ensuring that the decorators can be used interchangeably with the objects they decorate, thus preserving the object's interface contract.Real-World Usage of the Decorator Pattern

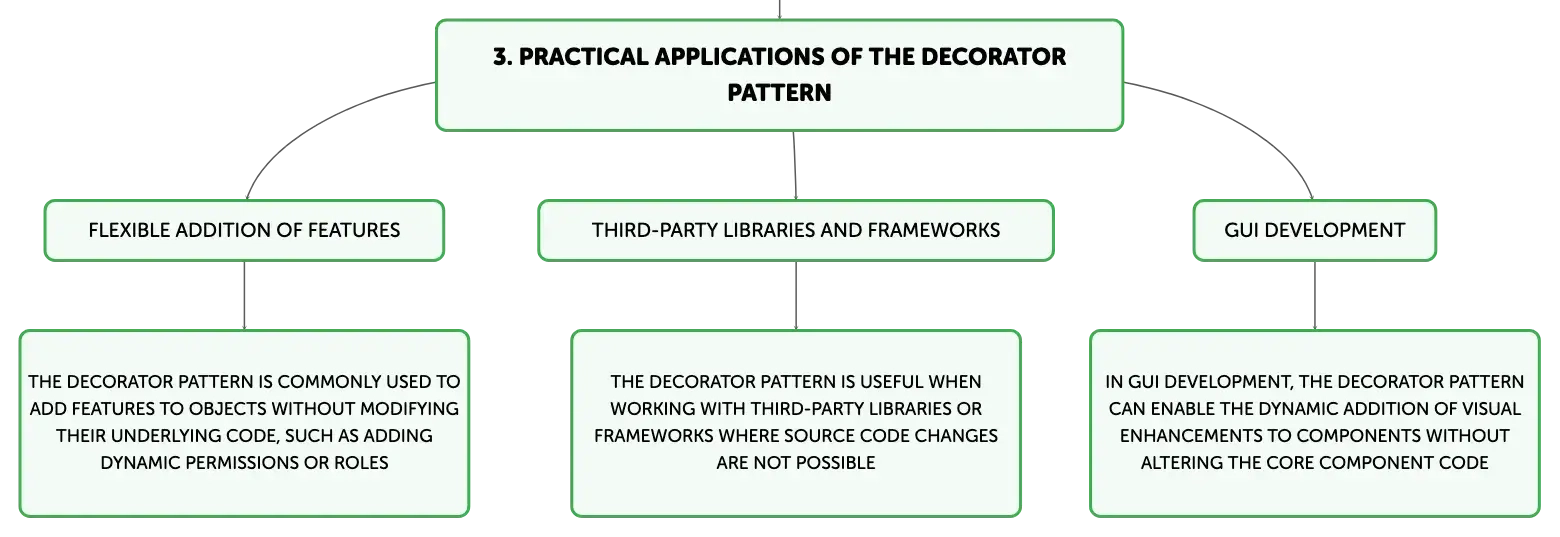

The Decorator Pattern finds practical use in scenarios requiring the flexible addition of features to objects. It is commonly applied to extend the capabilities of objects in a system without modifying their underlying code, such as adding dynamic permissions or roles. It is also useful when working with third-party libraries or frameworks where source code changes are not possible. For instance, in graphical user interface (GUI) development, the Decorator Pattern can enable the dynamic addition of visual enhancements to components, such as borders or scroll bars, without altering the core component code.Implementing the Decorator Pattern in Java

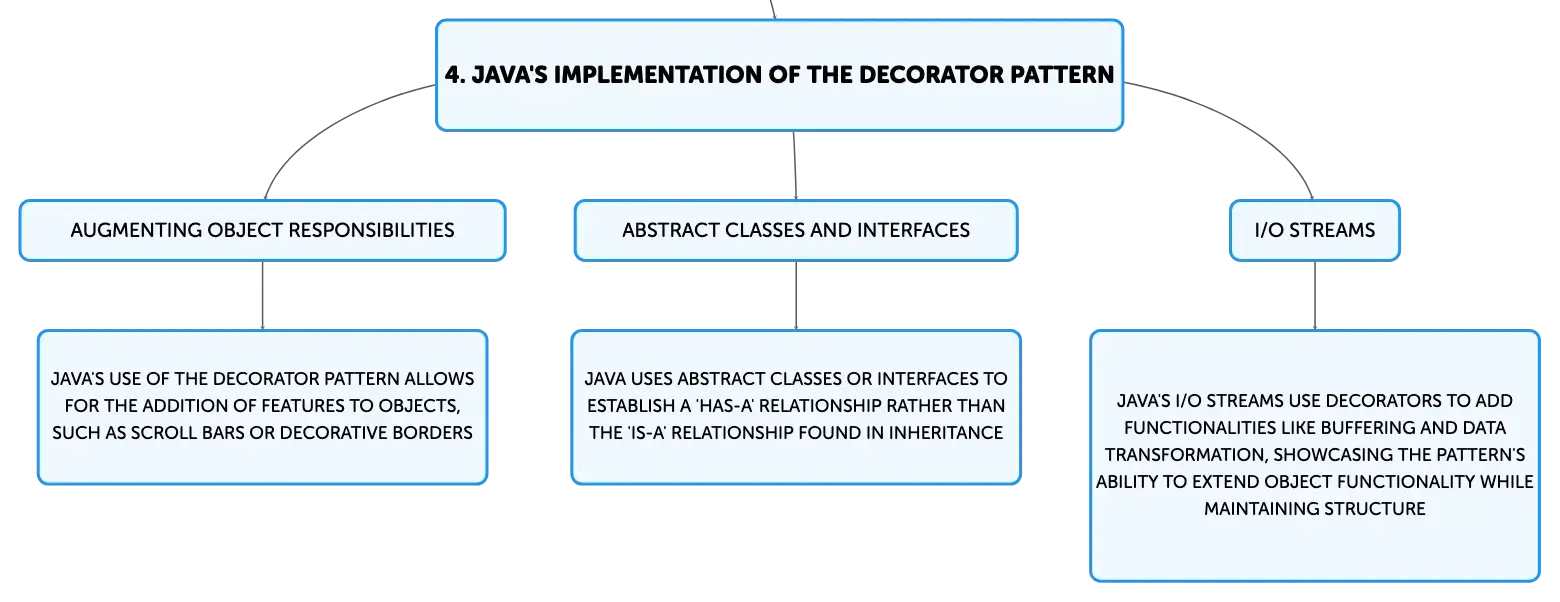

Java's application of the Decorator Pattern demonstrates its value in augmenting object responsibilities. For example, a simple GUI window can be enhanced with additional features like scroll bars or decorative borders. Java achieves this through the use of abstract classes or interfaces, establishing a 'has-a' relationship rather than the 'is-a' relationship found in inheritance. This pattern is also evident in Java's I/O streams, where decorators can add functionalities like buffering and data transformation, illustrating the pattern's capacity to extend object functionality while maintaining the original object's structure.Benefits and Trade-offs of the Decorator Design Pattern
The Decorator Pattern offers significant advantages, such as increased flexibility and scalability, and it supports the Open/Closed Principle, leading to more maintainable and modular software. It enables the dynamic addition of features and can alleviate the complexity that comes with extensive inheritance hierarchies. However, it can also introduce complexity in the code and potential performance overhead due to the multiple layers of wrapping. These trade-offs require careful consideration in the pattern's application to ensure that the benefits outweigh the potential for increased maintenance overhead.Concluding Insights on the Decorator Pattern
The Decorator Pattern is a strategic structural design pattern in software engineering that enables the dynamic enhancement of object behaviors without changing existing code structures. It aligns with key software development principles, such as the Open/Closed Principle and Single Responsibility Principle, and is versatile in its applications, from GUI enhancements to complex data stream processing. While it offers increased flexibility and scalability, developers must balance its advantages with the potential for added complexity and performance costs to achieve effective implementation in software projects.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Decorator Pattern: Structural or Behavioral?
Click to check the answer
2
Decorator Pattern: Class Modification Needed?
Click to check the answer
3
Decorator Pattern: Interface Conformance Necessary?
Click to check the answer
4
The ______ Pattern allows for extending behavior without changing existing code, adhering to the / Principle.
Click to check the answer
5
According to the ______ Responsibility Principle, a class should have only a single reason to ______.
Click to check the answer
6
Decorator Pattern: Flexible Feature Addition
Click to check the answer
7
Decorator Pattern: Non-intrusive Enhancements
Click to check the answer
8
Decorator Pattern: Third-party Code Adaptation
Click to check the answer
9
In Java, a basic GUI window can be improved by adding features such as ______ or ______.
Click to check the answer
10
Java's I/O streams use the Decorator Pattern to enhance functionality with features like ______ and ______.
Click to check the answer
11
Decorator Pattern: Open/Closed Principle support
Click to check the answer
12
Decorator Pattern: Dynamic feature addition
Click to check the answer
13
Decorator Pattern: Performance overhead concern
Click to check the answer
14
The ______ Pattern is a design strategy in software engineering that allows for the dynamic improvement of object behaviors without altering the original code.
Click to check the answer
15
This pattern supports important software development principles like the / Principle and the ______ Responsibility Principle.
Click to check the answer
