Polynomial Functions and Graphs
Polynomial functions are algebraic expressions with variables raised to non-negative integer exponents. This overview covers graphing techniques, identifying roots, turning points, y-intercepts, and end behavior. It also discusses constructing polynomial graphs and deducing equations from graphical representations, highlighting the importance of understanding polynomial functions in algebra and calculus.
See moreExploring the Basics of Polynomial Functions
Polynomial functions are algebraic expressions composed of terms that include variables raised to non-negative integer exponents, combined with real number coefficients. These functions are conventionally expressed in descending order of the power of the variable, known as the standard form: f(x) = a_nx^n + a_(n-1)x^(n-1) + ... + a_1x + a_0, where 'n' represents the degree of the polynomial. The degree indicates the highest power of the variable in the polynomial and is a non-negative integer. For example, f(x) = 3x^2 + 2x + 5 is a second-degree polynomial. Polynomials do not include variables with negative exponents or variables in the denominator, as these would create rational expressions rather than polynomial expressions.Graphing Polynomial Functions: Key Characteristics

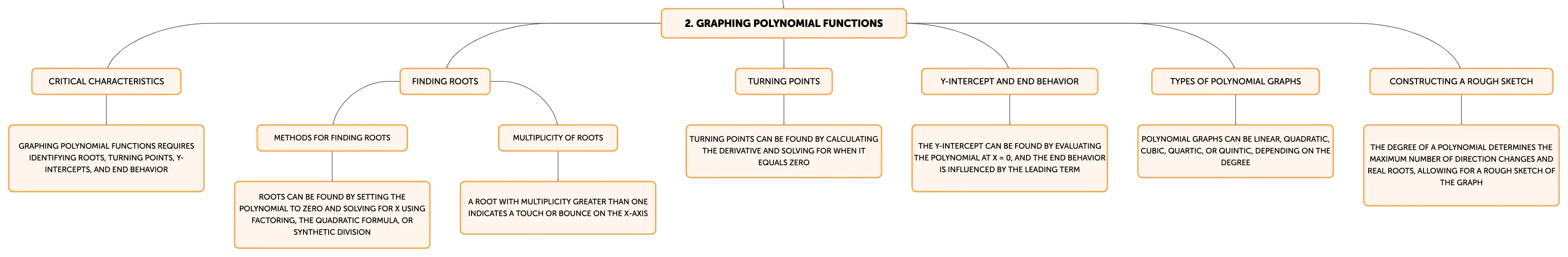

Graphing polynomial functions requires the identification of several critical characteristics. The roots, or x-intercepts, are the values of x for which the polynomial equals zero. These can be determined by setting the polynomial to zero and solving for x, using algebraic techniques such as factoring, applying the quadratic formula, or utilizing synthetic division. For example, the polynomial f(x) = (x-1)(x+3)(x+4) has roots at x = 1, x = -3, and x = -4. A root of multiplicity greater than one indicates that the graph will touch the x-axis at that point and either bounce off or flatten out, depending on the multiplicity. The turning points, which are the local maxima and minima, can be found by calculating the derivative of the function and solving for when the derivative equals zero. These x-values are then substituted back into the original function to find the corresponding y-values.Analyzing the Y-Intercept and End Behavior of Polynomial Graphs
The y-intercept of a polynomial graph is the point where the graph crosses the y-axis, which can be found by evaluating the polynomial at x = 0. The end behavior of a polynomial graph describes the direction in which the graph extends as x approaches positive or negative infinity. This behavior is influenced by the leading term, which is the term with the highest power of x. For polynomials with an odd degree and a positive leading coefficient, the graph descends to the left and ascends to the right. If the leading coefficient is negative, the graph ascends to the left and descends to the right. For even-degree polynomials, a positive leading coefficient results in the graph rising in both directions, while a negative leading coefficient causes the graph to fall in both directions.Constructing Polynomial Graphs and Recognizing Their Varieties
After identifying the key features, one can construct a rough sketch of a polynomial function's graph. The degree of the polynomial is related to the maximum number of direction changes in the graph, which is one less than the degree, and also to the maximum number of real roots. The types of polynomial graphs include linear (first degree), quadratic (second degree), cubic (third degree), quartic (fourth degree), and quintic (fifth degree), among others. Each type has a characteristic shape and a number of turning points that is at most one less than the degree of the polynomial.Reconstructing Polynomial Equations from Their Graphs

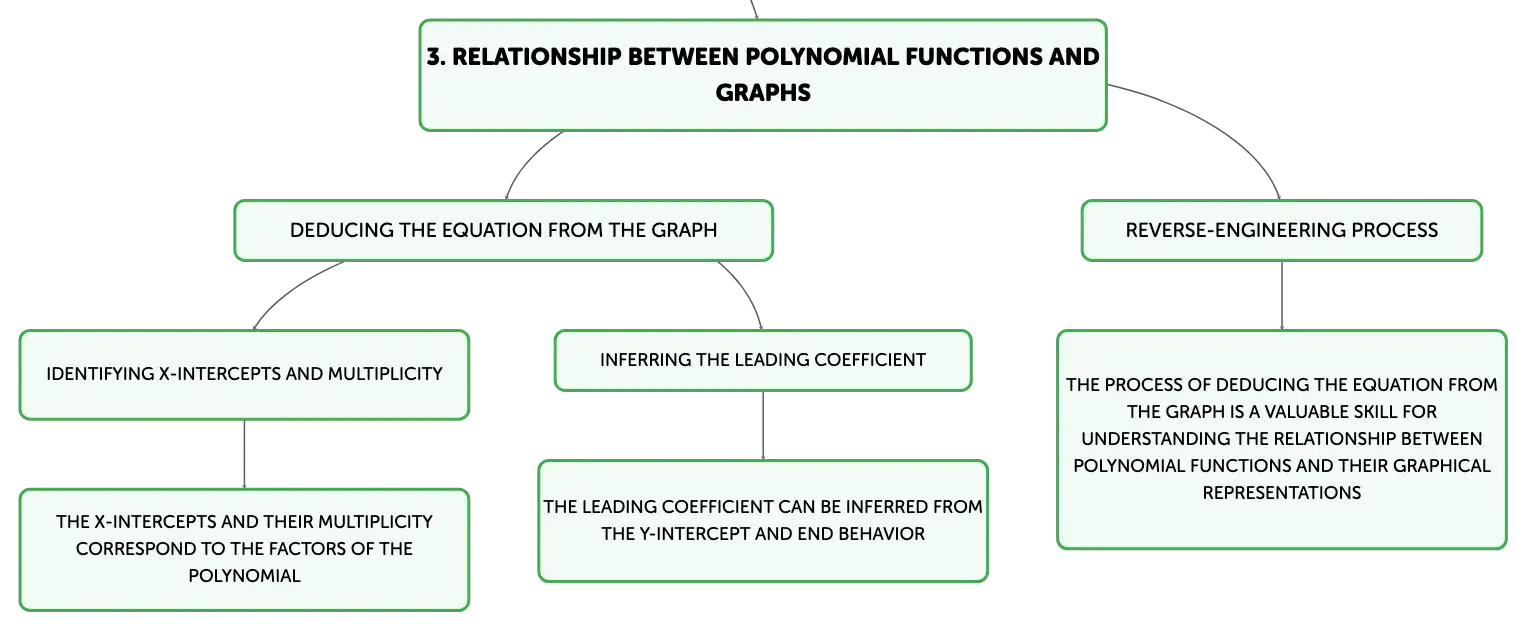

The equation of a polynomial function can often be deduced from its graph by identifying the x-intercepts and determining the multiplicity of each. These intercepts correspond to the factors of the polynomial. Additionally, the leading coefficient or stretch factor can be inferred from the y-intercept and the end behavior of the graph. Once these elements are identified, the polynomial can be written in factored form, which can then be expanded to standard form if necessary. This reverse-engineering process is a valuable skill for analyzing the relationship between polynomial equations and their graphical representations.Essential Insights into Polynomial Graphs
In conclusion, polynomial graphs are visual representations of polynomial functions that showcase distinct features such as roots, turning points, y-intercepts, and end behavior. The complexity of a polynomial graph is directly related to its degree, which influences the number of direction changes and potential real roots. Mastery of these concepts enables one to graph a given polynomial function with precision and to derive its equation from a graphical representation, underscoring the importance of polynomial graphs in the study of algebra and calculus.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
The highest power of the variable in a polynomial, which is a non-negative integer, is known as the ______ of the polynomial.
Click to check the answer
2
Roots of a Polynomial
Click to check the answer
3
Multiplicity of a Root
Click to check the answer
4
Finding Turning Points
Click to check the answer
5
For an even-degree polynomial, a ______ leading coefficient means the graph will rise on both ends, whereas a ______ coefficient indicates it will fall.
Click to check the answer
6
Degree of Polynomial vs. Direction Changes
Click to check the answer
7
Degree of Polynomial vs. Real Roots
Click to check the answer
8
Turning Points of Polynomial Graphs
Click to check the answer
9
The ______ of a polynomial is influenced by the y-intercept and the graph's end behavior.
Click to check the answer
10
Polynomial Graphs: Roots
Click to check the answer
11
Polynomial Degree: Impact on Graph
Click to check the answer
12
End Behavior of Polynomial Graphs
Click to check the answer
