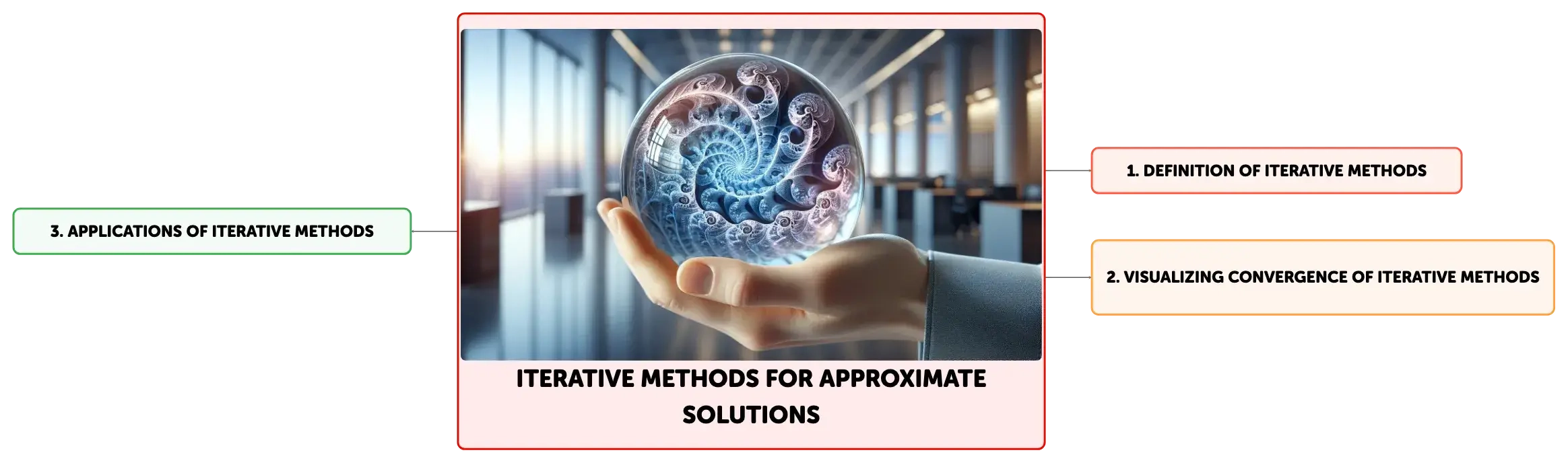

Iterative Methods for Approximate Solutions
Iterative methods are algorithms for approximating solutions to complex equations, such as quadratic or transcendental, when exact answers are elusive. These methods start with an initial guess and refine it through a recursive process. The text explores examples, graphical methods like staircase and cobweb diagrams, and the importance of the function g(x) for convergence. Understanding these methods is crucial for applications in various scientific and engineering fields.
See moreExploring Iterative Methods for Solving Equations

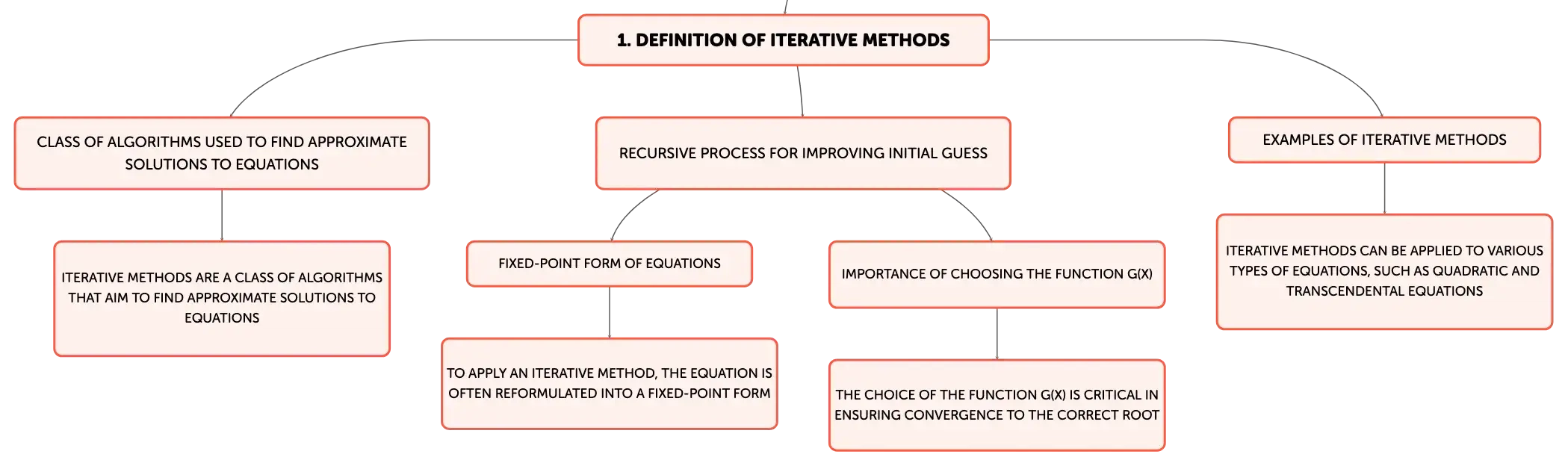

Iterative methods are a class of algorithms used to find approximate solutions to equations, particularly useful when exact analytical solutions are difficult or impossible to obtain. These methods begin with an initial guess and improve this estimate iteratively, using a recursive process that aims to converge to the true solution. To apply an iterative method, the equation f(x)=0 is often reformulated into a fixed-point form x=g(x), setting the stage for the iteration: xn+1 = g(xn). The choice of the function g(x) is critical, as it must ensure convergence to the correct root.Demonstrating Iterative Methods Through Examples
For example, consider the quadratic equation x^2 - 3x - 5 = 0. To apply an iterative method, we might rearrange it to x = (x^2 - 5)/3. Starting with an initial guess x0, we use the iterative formula xn+1 = (xn^2 - 5)/3 to generate successive approximations. Each iteration refines the estimate of the root. Another example involves the transcendental equation f(x) = xe^(-x) - x + 3. By rearranging, we get x = ln(x - 3)/-1, which leads to the iterative formula xn+1 = ln(xn - 3)/-1. With a suitable initial guess, this process yields increasingly accurate approximations of the solution.Graphical Interpretation of Iterative Methods

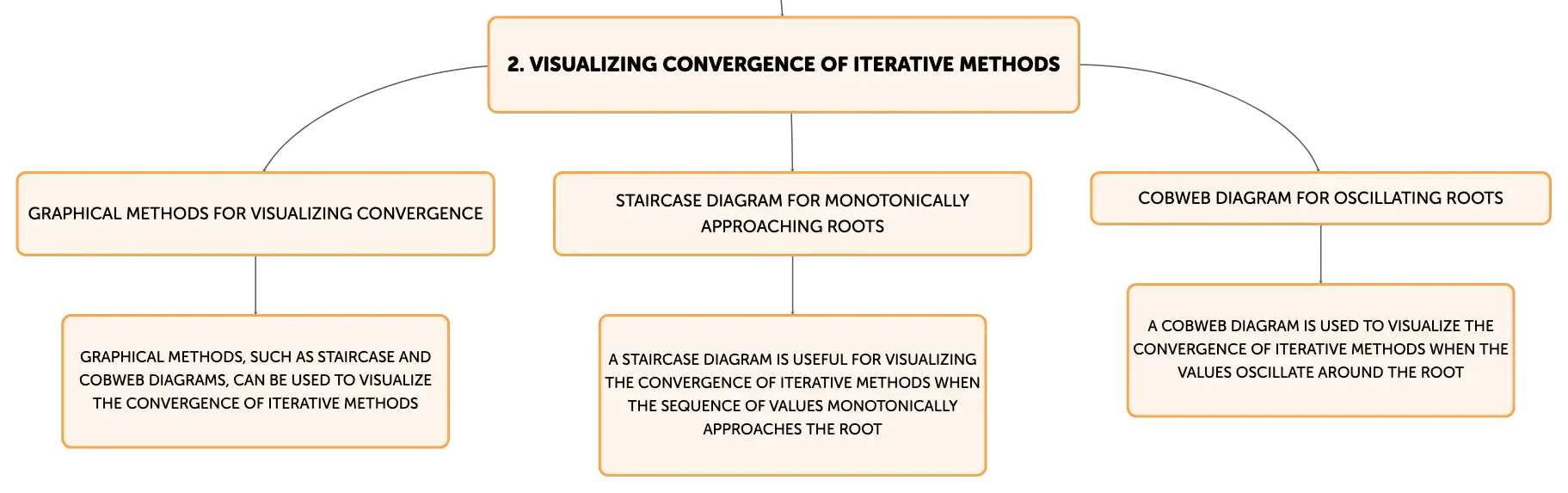

Graphical methods can be employed to visualize the convergence of iterative methods. These visualizations can provide insight into the behavior of the iterative process and the nature of the solution. A staircase diagram is useful when the sequence of iterative values monotonically approaches the root. For instance, plotting the function f(x) = x^2 - 3x - 5 alongside the iterative values x0, x1, x2, and x3, we can observe a pattern of convergence that resembles a staircase, indicating a steady progression towards the solution.Understanding Convergence Patterns with Diagrams
Alternatively, a cobweb diagram is used when the iterative values oscillate around the root. This pattern is observed in the transcendental equation example, where the iterative values may alternate above and below the root. By plotting these values, a cobweb-like pattern emerges, illustrating the convergence of the iterative process from different directions. Both staircase and cobweb diagrams are valuable pedagogical tools that help students visualize and understand the dynamics of iterative methods and the nature of their convergence.Conclusions on Iterative Methods

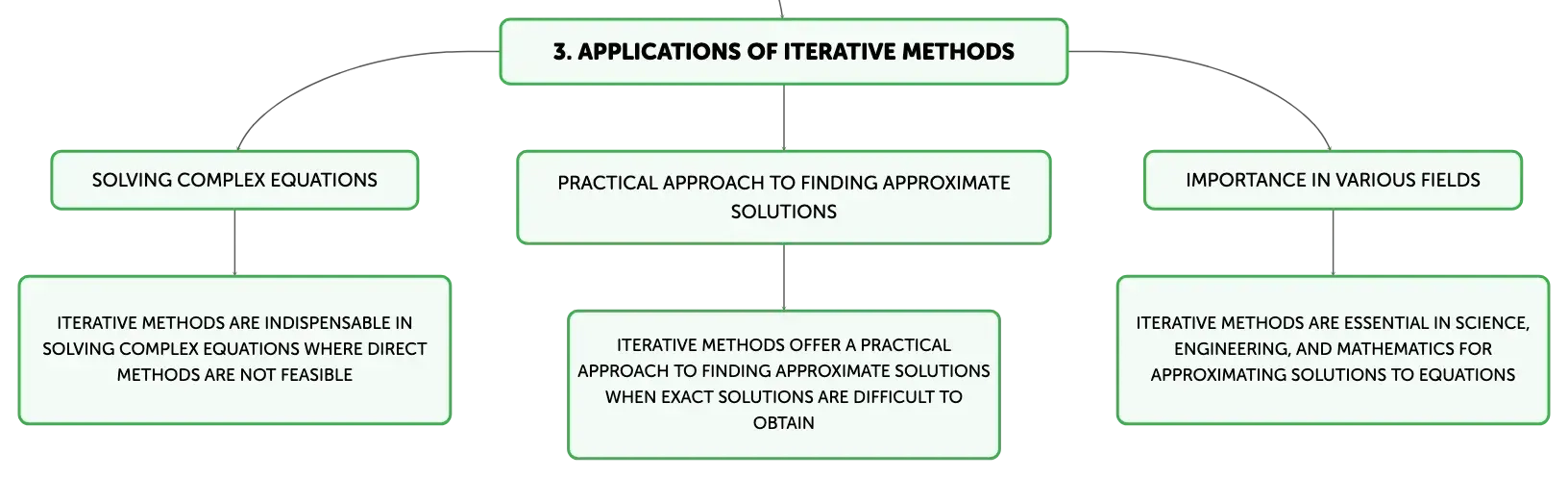

Iterative methods are indispensable in solving complex equations, offering a practical approach to finding approximate solutions where direct methods are not feasible. These methods, supported by graphical tools like staircase and cobweb diagrams, allow for a visual understanding of the convergence process. While iterative methods may not provide exact solutions, they enable us to approximate the roots with considerable precision, which is essential for many applications in science, engineering, and mathematics.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Initial Guess in Iterative Methods
Click to check the answer
2
Fixed-Point Formulation in Iteration
Click to check the answer
3
Convergence Criterion for g(x)
Click to check the answer
4
For the transcendental equation e^(-) - ______ + 3, rearranging gives ______ = ln(______ - 3)/-1, leading to the iterative formula ______n+1 = ln(______n - 3)/-1.
Click to check the answer
5
Purpose of staircase diagram in iterative methods
Click to check the answer
6
Behavior of iterative process in convergence
Click to check the answer
7
Example function to plot for iterative convergence
Click to check the answer
8
In the context of a transcendental equation, the iterative values may ______ above and below the root, creating a pattern that helps in visualizing the convergence process.
Click to check the answer
9
Iterative methods vs. Direct methods
Click to check the answer
10
Role of graphical tools in iterative methods
Click to check the answer
11
Precision of iterative methods
Click to check the answer
