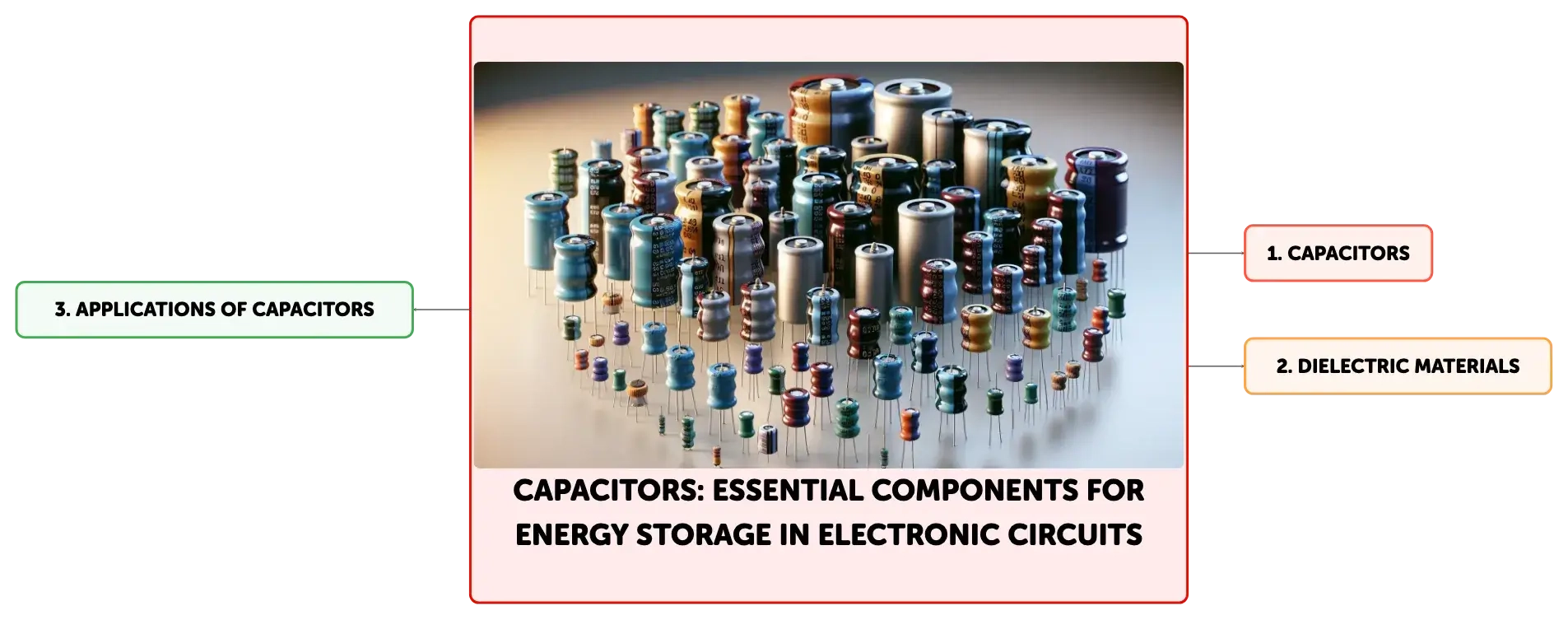

Capacitors: Essential Components for Energy Storage in Electronic Circuits
Capacitors are fundamental components in electronics, storing electrical energy through charge separation in an electric field. Their storage capacity, or capacitance, depends on the plate area, plate distance, and the dielectric constant. The text delves into the role of the dielectric material in energy storage and provides formulas for calculating the energy stored in capacitors, illustrating practical applications in devices like defibrillators.
See moreUnderstanding Capacitor Function and Energy Storage

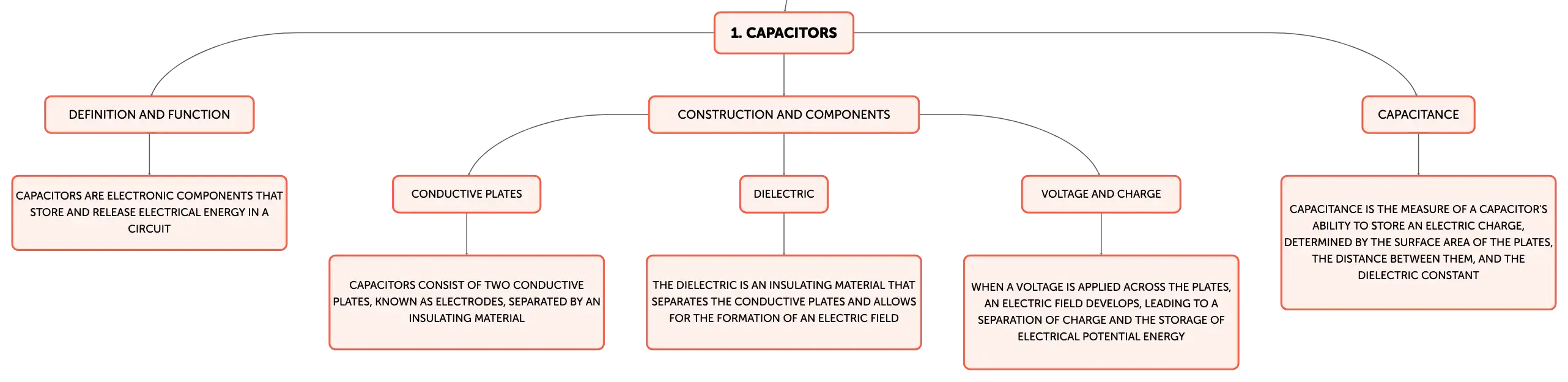

Capacitors are essential electronic components that store and release electrical energy in a circuit. They consist of two conductive plates, known as electrodes, separated by an insulating material called the dielectric. When a voltage is applied across the plates, an electric field develops in the dielectric, leading to a separation of charge: negative charge accumulates on the plate connected to the negative terminal of the power source, and positive charge accumulates on the plate connected to the positive terminal. This separation of charge stores electrical potential energy within the capacitor. The energy remains stored until the capacitor is connected to a load, at which point the energy is released, and the capacitor discharges.Capacitance and Its Determining Factors
Capacitance, measured in farads (F), is the capacity of a capacitor to store an electric charge. It is determined by the surface area of the plates (A), the distance between them (d), and the dielectric constant (\(\epsilon\)) of the insulating material. The capacitance is directly proportional to the plate area and the dielectric constant and inversely proportional to the distance between the plates. The formula for capacitance is \(C = \frac{\epsilon A}{d}\), where \(C\) is the capacitance, \(\epsilon\) is the permittivity of the dielectric material, \(A\) is the area of the plates, and \(d\) is the separation between them. The permittivity is a measure of how much electric field the dielectric can sustain, which affects the capacitor's ability to store charge.The Role of the Dielectric in Energy Storage

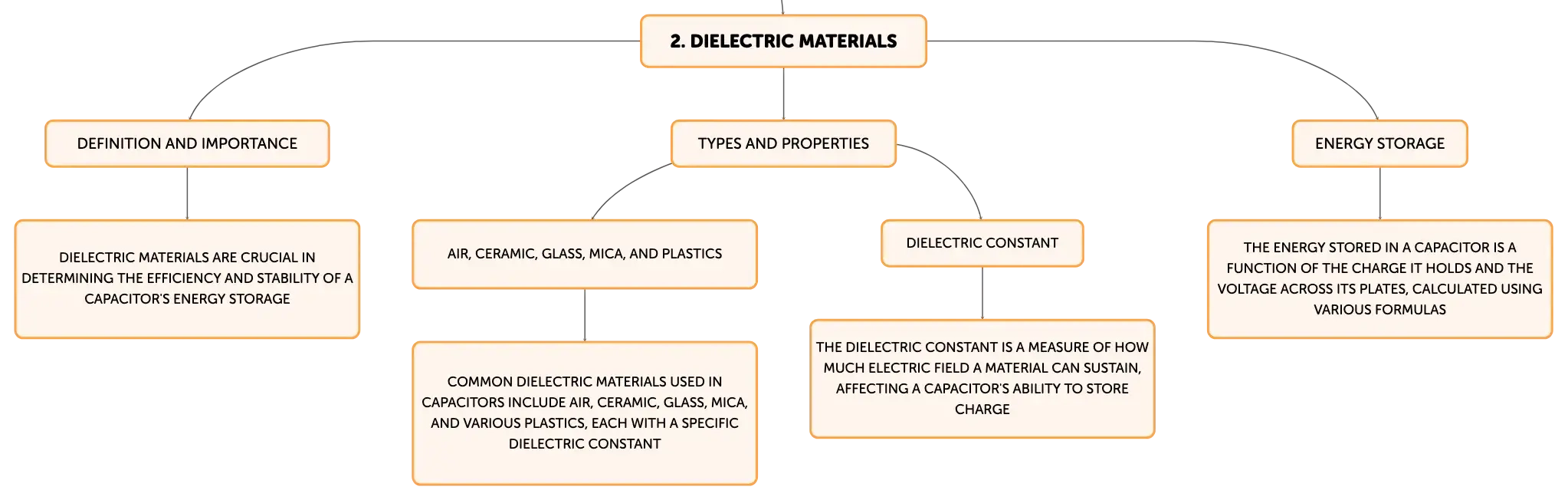

The dielectric material is crucial in determining the efficiency and stability of a capacitor's energy storage. It serves to insulate the plates, preventing direct electrical contact while allowing an electric field to form across it. The dielectric constant, a property of the material, influences the amount of energy a capacitor can store. Materials with higher dielectric constants can store more energy. Common dielectric materials include air, ceramic, glass, mica, and various plastics, each with a specific dielectric constant that makes them suitable for different applications.Calculating the Energy Stored in a Capacitor
The energy (E) stored in a capacitor is a function of the charge (Q) it holds and the voltage (V) across its plates. The energy can be calculated using the formula \(E = \frac{1}{2} QV\), which can also be expressed in terms of capacitance and voltage as \(E = \frac{1}{2} CV^2\), or in terms of charge and capacitance as \(E = \frac{Q^2}{2C}\). These equations allow for the determination of the stored energy based on known values of charge, voltage, and capacitance. The factor of 1/2 arises because the voltage across the capacitor varies linearly from zero to its maximum value as it charges, resulting in an average voltage of \(V/2\).Practical Examples of Energy Calculation in Capacitors

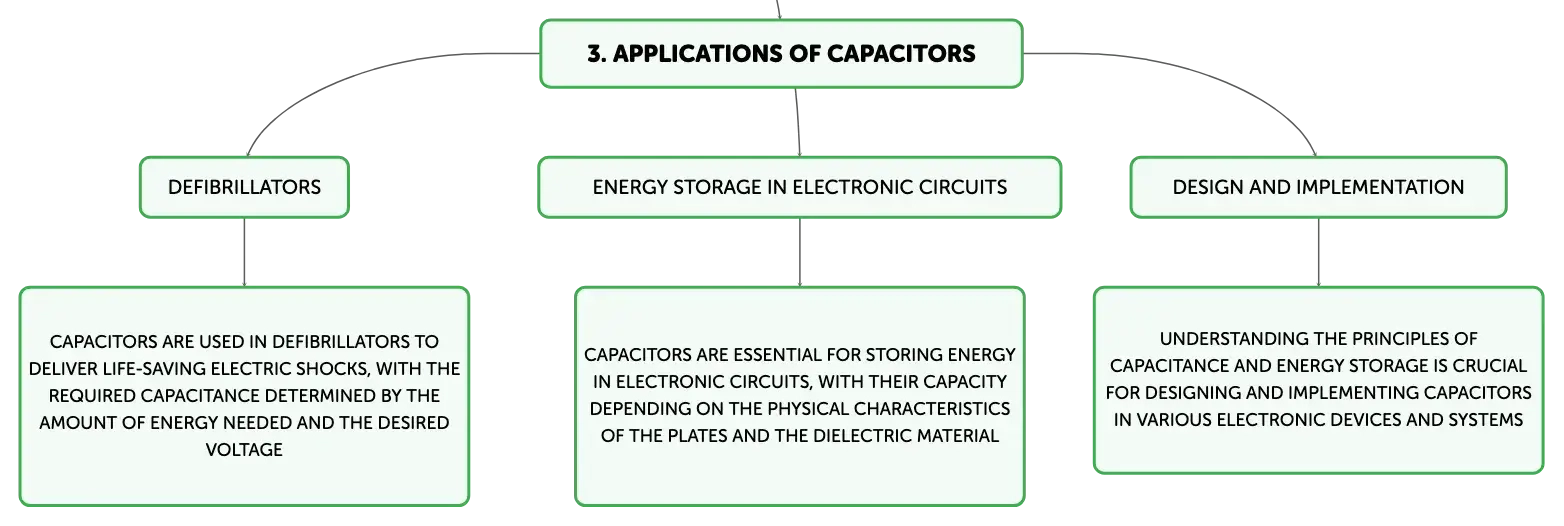

For practical applications, consider a defibrillator that uses a capacitor to deliver a life-saving electric shock. If the defibrillator needs to deliver 600 joules (J) of energy at a voltage of 1000 volts (V), the required capacitance can be calculated using the energy formula rearranged as \(C = \frac{2E}{V^2}\), yielding a capacitance of 1.2 millifarads (mF). In another scenario, a capacitor with a capacitance of 2.5 mF and a charge of 5 coulombs (C) would store an energy of 31.25 joules (J), calculated using \(E = \frac{Q^2}{2C}\). These examples demonstrate the application of the energy storage formulas in determining the energy capacity of capacitors for specific uses.Key Takeaways on Energy Storage in Capacitors
Capacitors are vital for energy storage in electronic circuits, with their capacity to store charge being dependent on the physical characteristics of the plates and the dielectric material. The quality of the dielectric is a significant factor in the capacitor's ability to store and retain energy. The formulas for capacitance and energy storage enable precise calculations of the energy a capacitor can hold, which is essential for designing and implementing capacitors in various electronic devices and systems. Understanding these principles is fundamental for students and professionals working with electronic components.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
______ are crucial components in electronics that accumulate and discharge ______ energy in a circuit.
Click to check the answer
2
A capacitor is made up of two ______ plates separated by an insulator known as the ______.
Click to check the answer
3
Capacitance unit of measurement
Click to check the answer
4
Capacitance formula
Click to check the answer
5
Permittivity significance in capacitors
Click to check the answer
6
Materials such as ______, ______, ______, ______, and ______ are often used as dielectrics due to their specific constants.
Click to check the answer
7
Capacitor energy in terms of charge and voltage
Click to check the answer
8
Capacitor energy in terms of capacitance and voltage
Click to check the answer
9
Capacitor energy in terms of charge and capacitance
Click to check the answer
10
A capacitor with a capacitance of 2.5 mF holding a charge of 5 coulombs would have an energy storage capacity of ______.
Click to check the answer
11
Capacitor charge storage dependency
Click to check the answer
12
Dielectric quality significance
Click to check the answer
13
Capacitance and energy formulas
Click to check the answer
