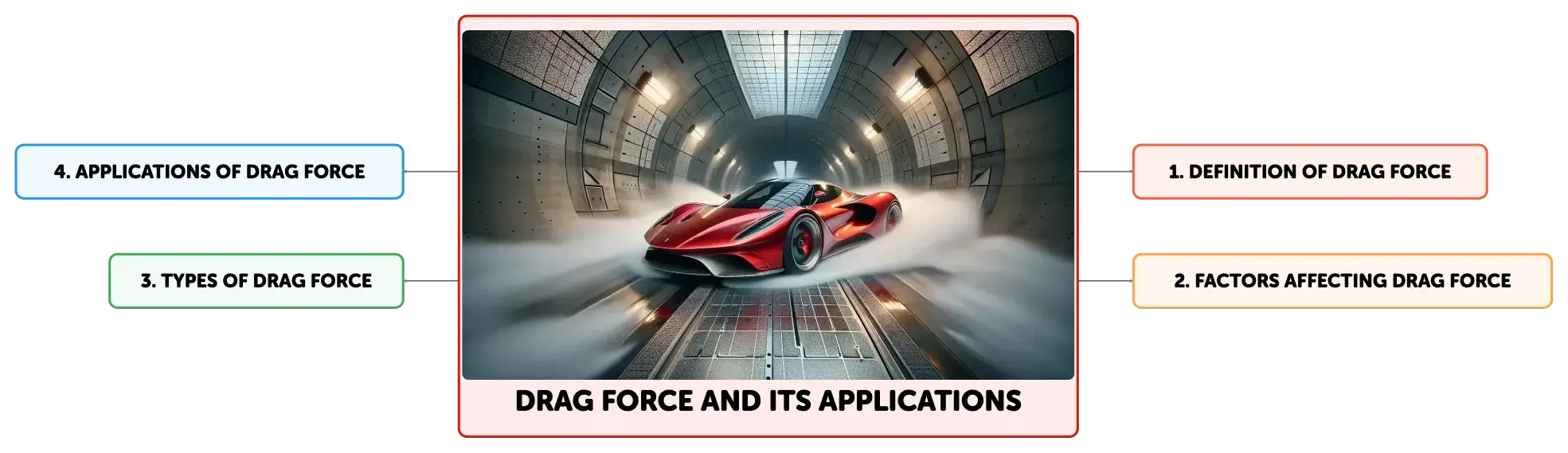

Drag Force and its Applications

Categories of Drag Force in Aviation

In aviation, drag force is categorized into several types, each affecting aircraft performance differently. Parasitic drag, which includes form drag and skin friction drag, is caused by the shape and texture of the aircraft. Induced drag is related to the generation of lift and increases with a higher angle of attack. Interference drag occurs when varying airstreams interact, and wave drag arises at speeds approaching or exceeding the speed of sound. Understanding these types of drag is crucial for the aerodynamic design of aircraft to achieve optimal performance and fuel efficiency.

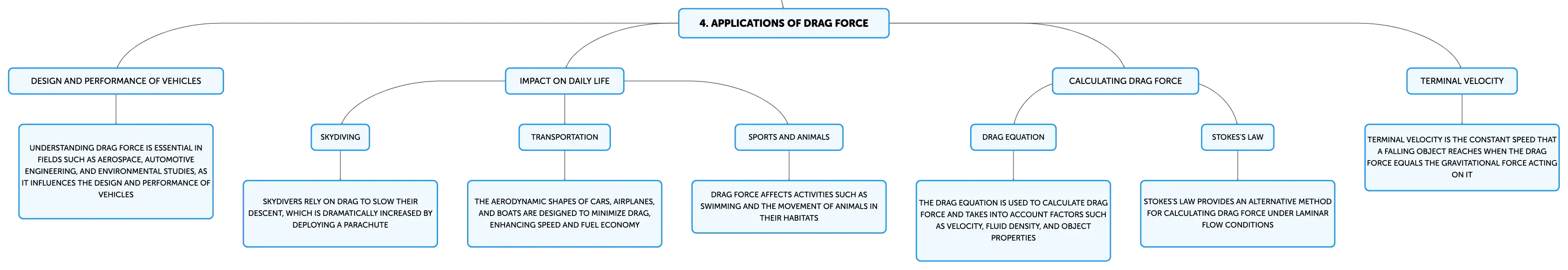

Everyday Encounters with Drag Force

Drag force is a part of daily life, influencing activities and designs across various domains. Skydivers rely on drag to slow their descent, which is dramatically increased by deploying a parachute. The aerodynamic shapes of cars, airplanes, and boats are designed to minimize drag, enhancing speed and fuel economy. Swimmers experience drag in water, and techniques to reduce it include streamlined body positions and specialized swimsuits. Animals, such as flying squirrels, utilize drag to glide through the air, and kites depend on drag for stability and lift. These examples underscore the pervasive impact of drag force on motion in fluids.

Calculating Drag Force: The Drag Equation

The drag force experienced by an object moving through a fluid can be calculated using the drag equation: \(D = \frac{1}{2} C_d \rho A v^2\), where \(D\) is the drag force, \(C_d\) is the drag coefficient, \(\rho\) is the fluid density, \(A\) is the reference area (projected area of the object), and \(v\) is the relative velocity between the object and the fluid. The drag coefficient is a dimensionless number that encapsulates the effects of shape, surface roughness, and flow conditions. Accurate application of this equation requires careful consideration of these variables and their appropriate units.

Stokes's Law for Laminar Flow Conditions

Stokes's Law provides an alternative method for calculating drag force under laminar flow conditions, typically applicable to small objects or low velocities. The law is given by \(F_d = 6\pi \mu r v\), where \(F_d\) is the drag force, \(\mu\) is the dynamic viscosity of the fluid, \(r\) is the radius of the spherical object, and \(v\) is the velocity of the object relative to the fluid. This linear relationship between drag force and velocity contrasts with the quadratic relationship found in the drag equation for turbulent flow, highlighting the importance of flow regime in determining drag.

Terminal Velocity: The Balance of Forces

Terminal velocity is the constant speed that a falling object reaches when the drag force equals the gravitational force acting on it. As an object falls, it accelerates until the increasing drag force counteracts the acceleration due to gravity. At terminal velocity, the net force is zero, and the object descends at a steady rate. This concept is vital for understanding the behavior of falling objects and is considered in the design of parachutes and other devices intended to control descent.

Practical Application of the Drag Force Equation

Applying the drag force equation to real-world scenarios requires an understanding of the involved variables. For instance, calculating the drag on a falling box involves determining its effective cross-sectional area, the air density, and the drag coefficient. By substituting these values into the drag equation, one can compute the drag force in newtons. This practical application demonstrates how the principles of drag force are integral to predicting and analyzing the motion of objects through fluids, providing valuable insights for design and engineering.
