Complex Ions and Ligands
The main topic of the text is the fundamentals of complex ions, including their formation, types of ligands, and resulting geometries. Complex ions consist of a central metal ion surrounded by ligands that donate electron pairs, forming coordinate covalent bonds. The coordination number and ligand denticity influence the complex's geometry, which can be tetrahedral, octahedral, linear, or square planar. The text also discusses stereoisomerism in coordination compounds and the importance of accurately depicting their structures for understanding their reactivity and properties.
See moreFundamentals of Complex Ions and Coordinate Covalent Bonds

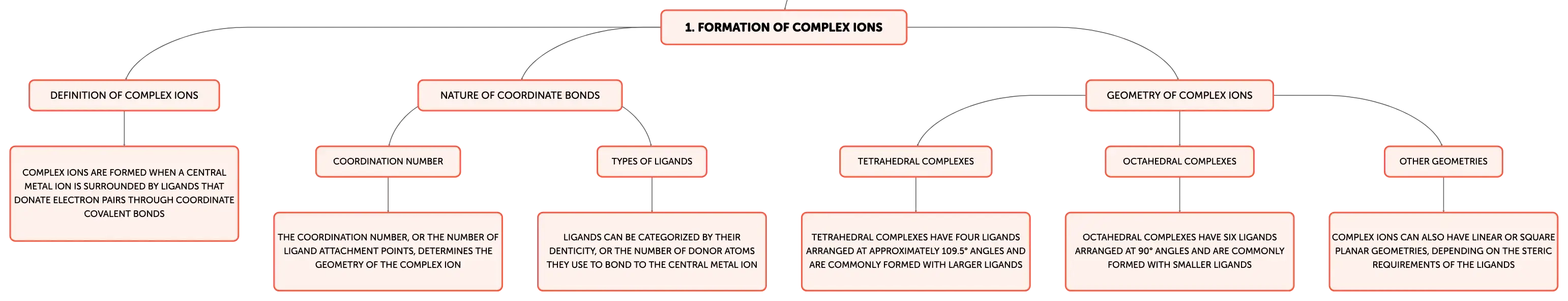

Complex ions are formed when a central metal ion, typically a transition metal, is surrounded by molecules or anions called ligands. These ligands possess at least one pair of nonbonding electrons and form coordinate covalent bonds with the metal ion by donating these electron pairs. The resulting structure and properties of the complex ion are largely determined by the nature of these coordinate bonds. The coordination number, which is the total number of ligand attachment points to the metal ion, is a key factor in determining the geometry of the complex. Ligands can be simple ions like chloride or more complex organic molecules such as ethylenediaminetetraacetate (EDTA).Ligand Types and Their Influence on Complex Ion Geometry
Ligands are categorized by their denticity, or the number of donor atoms they use to bond to the central metal ion. Monodentate ligands, such as water (H2O), chloride (Cl-), and ammonia (NH3), bind through a single donor atom. Bidentate ligands, like ethylenediamine (en) and oxalate (C2O4^2-), have two donor atoms that can simultaneously coordinate to a metal ion. Polydentate ligands, such as ethylenediaminetetraacetate (EDTA4-), can form multiple bonds to a metal ion. The denticity and spatial arrangement of ligands around the metal ion dictate the complex's geometry, which can be linear, square planar, tetrahedral, or octahedral, among others.Characteristics of Tetrahedral and Octahedral Complex Ions
Tetrahedral complexes are typically formed when the central metal ion is surrounded by four ligands, resulting in bond angles of approximately 109.5°. These complexes often involve larger ligands, such as chloride ions. Octahedral complexes have six ligands arranged at 90° angles to each other, and are commonly formed with smaller ligands like water or ammonia. The steric requirements of the ligands influence the maximum number of bonds that can form around the metal ion, thus determining the complex's shape.Linear and Square Planar Complex Ion Structures
Linear complex ions are characterized by having two coordinate bonds arranged at a bond angle of 180°, as seen in complexes like [Ag(NH3)2]+, which is used in Tollens' reagent. Square planar complexes have four ligands arranged at 90° angles, a notable example being cisplatin, a chemotherapy drug. The geometry of these complexes is not only important for their chemical reactivity but also for their biological activity, as in the case of cisplatin's interaction with DNA.Stereoisomerism in Coordination Compounds
Stereoisomerism in complex ions arises when identical complexes have different spatial arrangements of their ligands. Geometric isomerism, also known as cis-trans isomerism, can occur in both square planar and octahedral complexes, depending on whether identical ligands are adjacent (cis) or opposite (trans) to each other. Optical isomerism occurs when complexes are chiral, meaning they cannot be superimposed on their mirror images. This form of isomerism is often observed in octahedral complexes with chelating ligands. These isomers can have distinct chemical and biological properties, which is crucial for applications such as drug design.Depicting the Structures of Complex Ions
To accurately represent the three-dimensional structures of complex ions, chemists use various drawing conventions. Solid lines indicate bonds in the plane of the paper, wedges show bonds coming out of the plane towards the viewer, and dashed lines represent bonds going behind the plane. Mastery of these conventions is essential for chemists to communicate the spatial arrangement of ligands around the central metal ion, which is critical for understanding the complex's reactivity and properties.Calculating the Net Charge of Complex Ions
The overall charge of a complex ion is determined by summing the charges of the central metal ion and its surrounding ligands. For example, in the tetrahedral complex [CuCl4]2-, each chloride ligand contributes a -1 charge, totaling -4, while the copper(II) ion has a +2 charge. The net charge of the complex is therefore -2. Accurately calculating the charge is important for predicting the complex ion's interactions with other charged species and its solubility in various solvents.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Role of ligands in complex ions
Click to check the answer
2
Coordination number significance
Click to check the answer
3
Variety of ligands
Click to check the answer
4
Ligands are classified by their ______, which is the count of donor atoms used to attach to the central metal ion.
Click to check the answer
5
______ ligands, like water and ammonia, connect to a metal ion using just one donor atom.
Click to check the answer
6
Tetrahedral complex bond angles
Click to check the answer
7
Octahedral complex ligand arrangement
Click to check the answer
8
Influence of ligand size on complex shape
Click to check the answer
9
Linear complex ions, such as the one used in ______ reagent, have two bonds at a ______ degree angle.
Click to check the answer
10
______, a chemotherapy medication, is an example of a square planar complex with ligands at ______ degree angles.
Click to check the answer
11
Geometric isomerism in square planar complexes
Click to check the answer
12
Optical isomerism in coordination compounds
Click to check the answer
13
Significance of stereoisomers in drug design
Click to check the answer
14
In chemical diagrams, ______ lines depict bonds on the paper's plane, while ______ indicate bonds projecting towards the observer.
Click to check the answer
15
Charge contribution of ligands in [CuCl4]2-
Click to check the answer
16
Significance of calculating complex ion charge
Click to check the answer
