Electrical Systems
Exploring the role of electrical systems in modern technology, this overview covers the basics of circuits, including resistors, capacitors, and inductors. It delves into residential circuit design, power generation and distribution, and the use of photovoltaic systems for solar energy conversion. The interplay of current and voltage, along with the importance of safety devices like circuit breakers, is also highlighted.
See moreThe Role and Function of Electrical Systems
Electrical systems form the backbone of modern technology, powering everything from household appliances to the complex grid infrastructure that delivers electricity across cities and countries. These systems are composed of circuits that include various electrical components, each designed to perform specific functions to control and direct the flow of electrical energy. The two primary quantities that define the behavior of electrical systems are current, which is the flow of electric charge, and voltage, which is the electric potential that drives the charge through a circuit. Understanding the interplay between current and voltage is essential for comprehending how electrical systems operate.Essential Components of Electrical Circuits
The fundamental building blocks of electrical circuits are resistors, capacitors, and inductors. Resistors impede the flow of electric current and are defined by their resistance, calculated using Ohm's law, \( V = IR \), where \( V \) is voltage, \( I \) is current, and \( R \) is resistance. Capacitors store electrical energy in an electric field, created by the separation of charges, and their storage capacity is measured in farads. Inductors, which store energy in a magnetic field when electric current flows through them, are vital in the creation of inductance in a circuit. These components are used in various combinations to control electrical energy in practical applications.Residential Electrical Circuit Design
Residential electrical systems typically begin with a step-down transformer, which reduces the high voltage from the power grid to a safer level for home use. The electricity is then routed through circuits to power various devices. The configuration of these circuits, whether in series or parallel, affects the distribution and control of power. Safety devices such as circuit breakers and fuses are also integral to residential systems, protecting against overloads and short circuits that can cause damage or fire.Generation and Distribution of Electrical Power
Electrical power systems are complex networks that convert mechanical, chemical, or other forms of energy into electrical energy and then transport it to consumers. These systems can utilize a variety of energy sources, including traditional fossil fuels and alternative sources like wind, solar, and hydroelectric power. The conversion process often involves generators that use electromagnetic induction to produce electricity. The generated power is then transmitted through high-voltage power lines and distribution networks to reach end-users.Photovoltaic Systems for Solar Energy Conversion

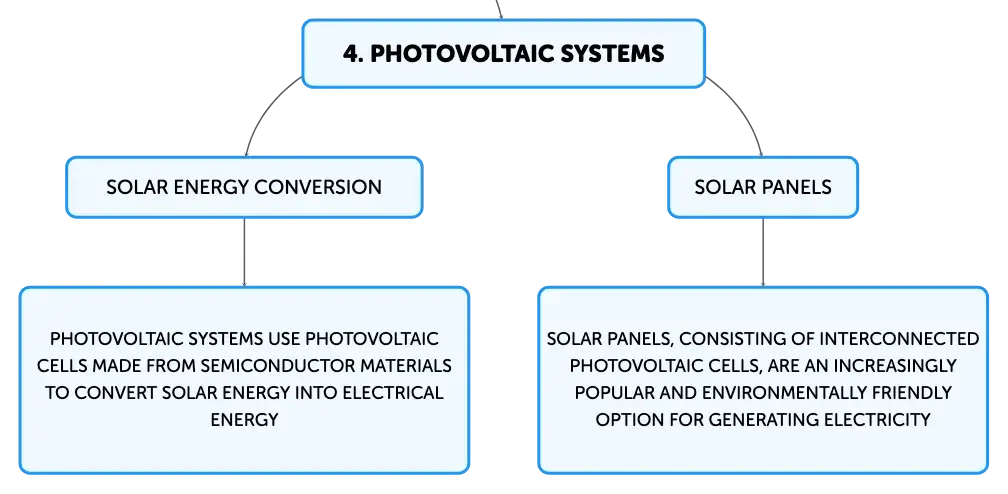

Photovoltaic systems are a sustainable method of converting solar energy into electrical energy. These systems use photovoltaic cells made from semiconductor materials, such as silicon, which generate an electric current when exposed to sunlight. The electrons in the semiconductor material are excited by the photons of light, creating an electric current that can be used directly or stored for later use. Solar panels, which consist of many interconnected photovoltaic cells, are an increasingly popular and environmentally friendly option for generating electricity.Concluding Insights on Electrical Systems
Electrical systems are a critical aspect of modern infrastructure, encompassing a wide range of technologies and components that enable the efficient use and distribution of electrical energy. A fundamental understanding of electrical principles, such as current, voltage, and the function of resistors, capacitors, and inductors, is essential for comprehending how these systems work. From the vast networks of power grids to the innovative solar panels harnessing renewable energy, electrical systems play a pivotal role in powering our world, emphasizing the need for continued advancements in energy efficiency and sustainability.Want to create maps from your material?
