The Electrochemical Series
The electrochemical series ranks elements by their standard electrode potentials, indicating their ability to undergo oxidation or reduction. It's essential for understanding electrochemical cells, predicting redox reactions, and identifying strong oxidizing and reducing agents. This series is foundational in energy technology, influencing the design of batteries and fuel cells, and is a key tool in chemical synthesis.
See moreExploring the Electrochemical Series
The electrochemical series is a crucial tool in electrochemistry that lists elements in order of their standard electrode potentials (E°), which are measured under standard conditions (298 K, 1 M concentration, and 100 kPa pressure). These potentials indicate the tendency of an element to lose electrons, or undergo oxidation. The more negative the standard electrode potential, the stronger the reducing power of the element, meaning it is more likely to donate electrons during chemical reactions. The series is established by measuring the voltage difference between various half-cells and a standard hydrogen electrode, which is set at a potential of 0 volts.Fundamentals of Half-Cells in Electrochemistry
Half-cells are the building blocks of electrochemical cells and are essential for understanding the electrochemical series. A half-cell is composed of a conductor (usually a metal) in contact with a solution of its ions. The metal and its ions reach an equilibrium that creates an electrode potential, reflecting the metal's propensity to lose electrons. For example, a half-cell made of zinc metal in a zinc sulfate solution has a specific electrode potential. A more negative potential suggests a higher likelihood for the metal to act as a reducing agent by releasing electrons.Electrochemical Cells and Their Functioning
An electrochemical cell is formed by connecting two different half-cells, such as zinc and copper, with a conductive wire and a salt bridge to complete the circuit. The cell operates based on redox reactions, where oxidation (loss of electrons) occurs at the anode, and reduction (gain of electrons) occurs at the cathode. The flow of electrons from the anode to the cathode generates an electric current, while the salt bridge allows ions to move between the half-cells to maintain electrical neutrality. The cell potential, which is the difference in electrode potentials between the two half-cells, can be calculated and used to predict the direction of electron flow and the feasibility of the redox reaction.Determining Standard Electrode Potentials
Standard electrode potentials are measured by connecting a metal half-cell to a standard hydrogen electrode, which is the reference point with a potential of zero volts. These potentials are recorded as reduction potentials, which indicate the ease with which a species can accept electrons. For instance, the standard electrode potential for zinc is -0.76 V, showing that zinc has a greater tendency to lose electrons (and thus be oxidized) than hydrogen. The collection of these potentials for various elements and compounds forms the electrochemical series, which serves as a comparative chart for predicting the outcome of electrochemical reactions.Practical Applications of the Electrochemical Series

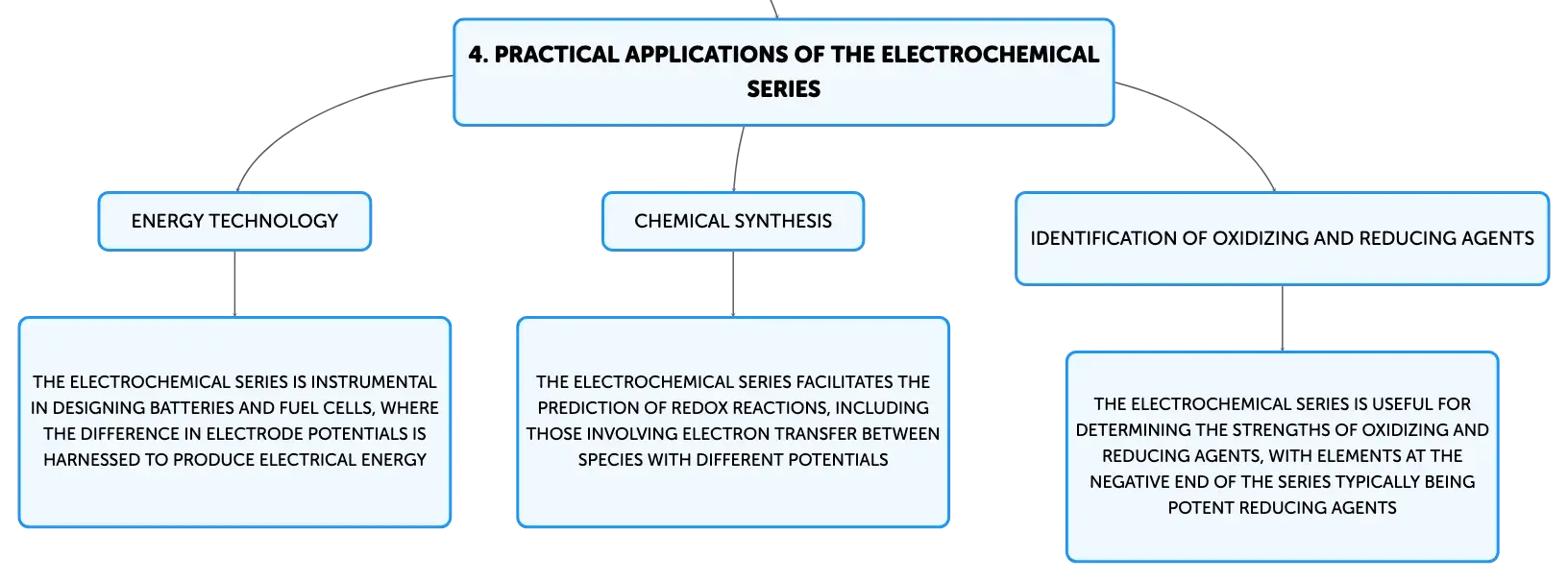

The electrochemical series has significant practical applications in energy technology and chemical synthesis. It is instrumental in designing batteries and fuel cells, where the difference in electrode potentials between two half-cells can be harnessed to produce electrical energy. The series also facilitates the prediction of redox reactions, including those that involve electron transfer between species with different potentials. It is useful for determining strong and weak oxidizing and reducing agents, with elements at the negative end of the series typically being potent reducing agents.Key Insights from the Electrochemical Series
The electrochemical series is an indispensable reference in chemistry, ranking elements and compounds by their standard electrode potentials and thus their relative reactivity in oxidation-reduction reactions. It is foundational for the comprehension of electrochemical cells, the prediction of redox reactions, and the identification of the strengths of oxidizing and reducing agents. The series is based on measurements taken under standardized conditions to ensure consistency and reliability. Its principles are integral to the development and operation of modern energy storage and conversion devices, underscoring its importance in both theoretical and practical aspects of chemistry.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
The standard hydrogen electrode is assigned a potential of ______ volts, and is used as a reference to establish the ______ series.
Click to check the answer
2
Definition of electrode potential in half-cells
Click to check the answer
3
Role of conductor in half-cell
Click to check the answer
4
Significance of negative electrode potential
Click to check the answer
5
In an electrochemical cell, ______ happens at the ______, while ______ takes place at the ______, resulting in an electric current.
Click to check the answer
6
Reference point for standard electrode potentials
Click to check the answer
7
Meaning of negative standard electrode potential
Click to check the answer
8
Purpose of electrochemical series
Click to check the answer
9
The ______ series is crucial for creating batteries and fuel cells by utilizing the potential difference between two ______.
Click to check the answer
10
In the ______ series, elements at the ______ end are generally strong reducing agents.
Click to check the answer
11
Electrochemical Series Definition
Click to check the answer
12
Standard Electrode Potentials Purpose
Click to check the answer
13
Electrochemical Series in Energy Devices
Click to check the answer
